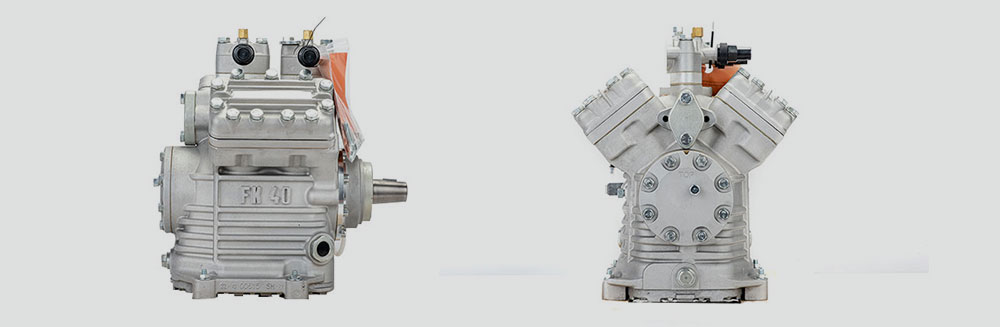

BOCK FK40 655K

BOCK FK40 655K

Brand Name: BOCK
Number of cylinders / Bore / Stroke 4 / 65 mm / 49 mm
Swept volume: 650 cm³
Displacement (1450/3000 ¹/min ): 56,60 / 117,10 m³/h
Mass moment of inertia: 0,0043 kgm²
Weight: 36 kg
We're here to help: Easy ways to get the answers you need.
Description

Brief Introduction of Bock FK40 655K


KingClima can provide original new compressor bock fk40 655 with best price from China.
Compressor bock fk40 655 is very popular in some oem of bus ac units such as Thermo King, Konvekta, Sutrak, Autoclima and webasto... see the following of bock fk40 655 compressor oem code is:

BOCK FK40 655K FKX40 655K Compressor OEM NUMBER
Thermo King 10-7346, 107346, 107-346 10-70346, 1070346, 107-0346
10-2953, 102953, 102-953 10-20953, 1020953, 102-0953
10-2908, 102908, 102-908 10-20908, 1020908, 102-0908
10-2823, 102823, 102-823 10-20823, 1020823, 102-0823
10-2805, 102805, 102-805 10-20805, 1020805, 102-0805
Konvekta H13-004-503, H13004503, H 13004503 H13-003-503, H13003503, H 13003503 H13-003-574, H13003574
H 13003574 H13003515  H13666007
Sutrak 24010106047, 24.01.01.060.47 24,01,01,060,47
24010106047 24010106015 – 24010106070 –
Autoclima 404300831
Webasto 68802A 93973A
OEM 5006208072 13992 –  13945 240111005 – 42554713 –
5006208072 – 81779700009 – 8817010002800 –
8862010002527 – A6298305660 – 6298305660 – RMCO306
Model FK 40/655K, FK-40/655K, FK40/655K
-KV 40/655K,KV-40/655K, KV40/655K
-FKX-40/655K, FKX - 40/655K, FKX40/655K
-KVX-40/655K, KVX - 40/655K, KVX40/655K
Parameters

Technical of Compressor Bock fk 40 655


FKX40 655k Original Bock Bus Air Conditioner Compressor
Number of cylinders / Bore / Stroke 4 / 65 mm / 49 mm
Swept volume 650 cm³
Displacement (1450/3000 ¹/min ) 56,60 / 117,10 m³/h
Mass moment of inertia 0,0043 kgm²
Weight 36 kg
Permissible range of rotation speeds 500 - 3500 ¹/min
Max. permissible pressure (LP/HP) 19 / 28 bar
Connection suction line SV 35 mm - 1 3/8 "
Connection discharge line DV 35 mm - 1 3/8 "
Lubrication Oil pump
Oil type R134a, R404A, R407C, R507 FUCHS Reniso Triton SE 55
Oil type R22 FUCHS Reniso SP 46
Oil charge 2,0 Ltr.
Dimensions (L*W*H ) 385 * 325 * 370 mm
LP = Low pressure,HP = High pressure
