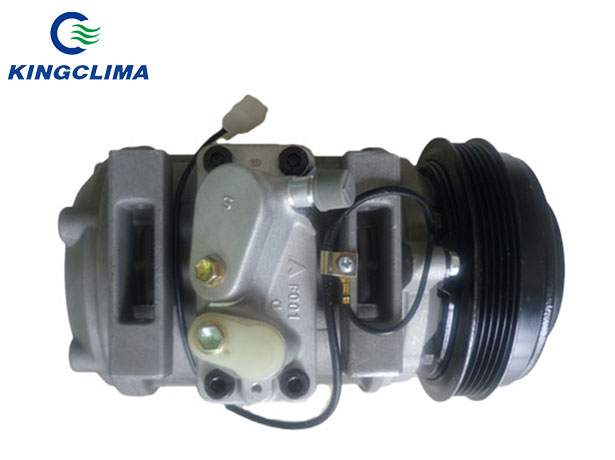

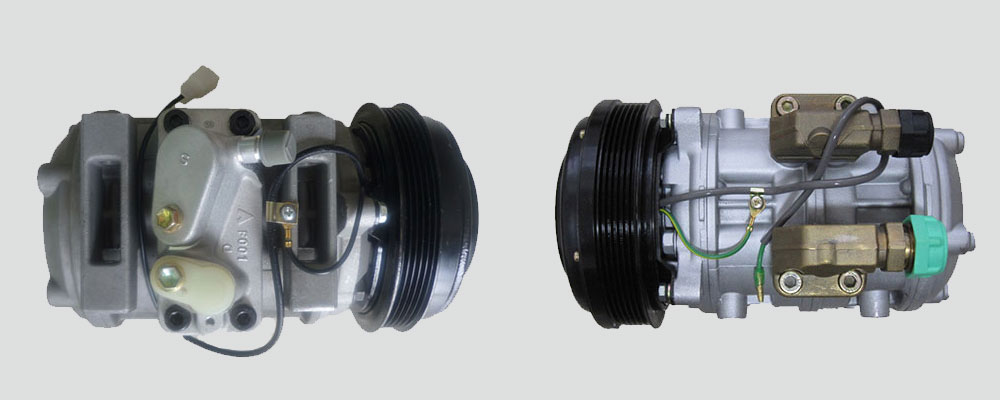

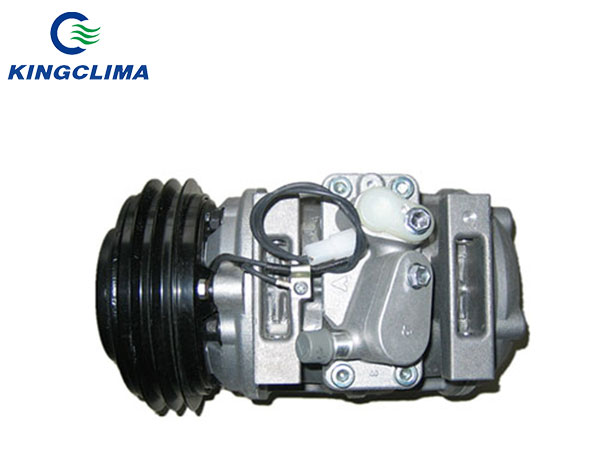

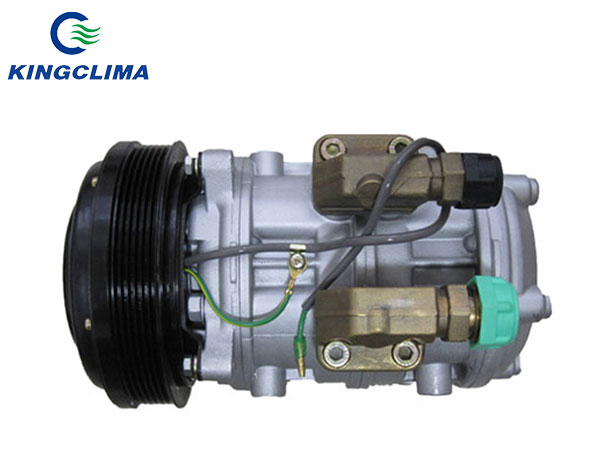

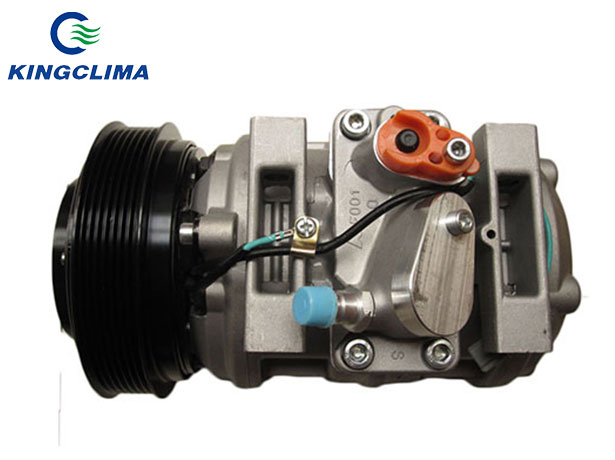

Denso Compressor 10PA30C

Brand Name: Denso 10pa30c
Rated Voltage : 12V/24V
Number Of Groove : 2pk,2 pulley/2B/2O, or 5PK,7PK,8PK...
Refrigerant : R134a
Application : bus air conditioners
Weight: 15KG
We're here to help: Easy ways to get the answers you need.
DESCRIPTION

Brief Introduction of 10PA30C Denso Compressor


109a30c denso (or 447220-1120 denso ) is auto ac compressor for bus air conditioners. KingClima provide the original new 10pa30c with a best price. For the 447220-1120 denso is the OEM code number. Some other OEM code number of Denso 10pa30c is as the following number:

88320-36560
88320-36530
8832002500
88310-1A730
447190-8200
447180-409
88310-36212
447220-1451
447170-3340
447220-1030
447220-1101
447220-0394
447220-1472
447300-0611
447280-0042
447220-8987
447180-2340
447220-1041

PARAMETERS

Technical of 10PA30C Denso Compressor


Compressor Model 10P30C/10PA30C
Car Model For Toyota coaster Bus
Condition New / Rebuilt / Original
Refrigerant R134a
Voltage 12V/24V
Power 50W
Displacement 300 cubic cm
Number of cylinders 10
Volume of Lubriant 400CC
Allowed speed range 500-60001/min
Lubrication method oil pump
Control Method Automatic adjustment
Number of Grooves 2pk,2 pulley/2B/2O, or 5PK,7PK,8PK...
Pulley Diameter 157mm
OEM number 88320-36560 88320-36530 8832002500
88310-1A730 447190-8200 447180-409
88310-36212 447220-1451 447170-3340
447220-1030  447220-1101 447220-0394
447220-1472 447300-0611 447280-0042
447220-8987 447180-2340 447220-1041
Weight 15 KG
