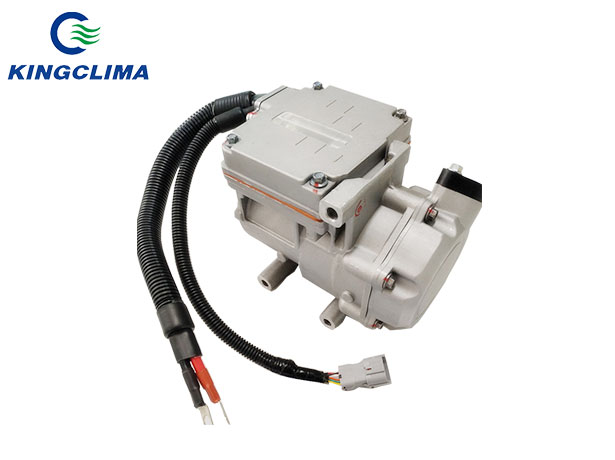

Benling DM18A6 18cc 24v Electric AC Compressor for Car - KingClima

Benling DM18A6 18cc 24v Electric AC Compressor for Truck AC

Model: DM18A6
Refrigerant capacity(3000 rpm): 1.38kw /4700 Btu/hr
Voltage: 24V
Discharge Capacity: 18cc/rev
We're here to help: Easy ways to get the answers you need.
Discription

Brief Introduction of Electric Air Compressor for Truck DM18A6


KingClima is the best supplier of electric ac compressor for car, we are the fist overseas supplier for Bengling compressor. We provide Benling original new electric compressor for car ac with 18cc 12V/24V voltage.

Here the DM18A6 electric compressor for car air conditioner is 24V 18cc discharge with 1600-6000 rotated speed. It is used for electric truck cooling solutions.

If the truck need to change its air conditioning system into electric parking air conditioning system, it needs this electric ac compressor for truck to retrofit.

Technical Data

Technical of DM18A6 Electric AC Compressor for Truck


Performance(DM18A6)
refrigerant capacity(3000 rpm) 1.38kw /4700 Btu/hr
input power 0.74 KW
current 30A
refrigerant capacity(4000 rpm) 189kw /6400 Btu/hr
input power 0.98KW
current 43A
refrigerant capacity(6000 rpm) 2.90kw /9900 Btu/hr
input power 1.16 KW
current 65A
test condition Pd/Ps=1.47/0.196 Mpa(G) SC=5℃  SH=10℃
Usable range
evaporated temperature 12 °F ~  70°F
condenser temperature 77 °F ~  167°F
compression ratio 8.0 MAX
refrigerant R134a
start temperature -26 °F ~ 158 °F
working temperature -26 °F ~ 212 °F
storing temperature -40 °F ~ 221 °F
Compressor parameter
discharge capacity 18.0 cc/rev
weight 5.4kg
oil charge 100cc  PVE oil
refrigerant capacity 650cc
rotated speed rang 1800rpm---6000 rpm
safety valve pressure 4.0 Mpa
cover protection level IP67
motor coil temperature 248°F MAX
discharge temperature 239°F MAX
Motor parameter
motor type PMSM (permanent magnet synchronous motor
rated tortue 2.30 Nm
max tortue refer to diagram
Drive parameter
max power 2000W
working frequency 30HZ-120HZ
over heating protection 212°F
low voltage protection 20V
over voltage protection 31V
soft hardware overload yes
control method (common way) 1, pwm  2,gear 3,can 4-----


Photos

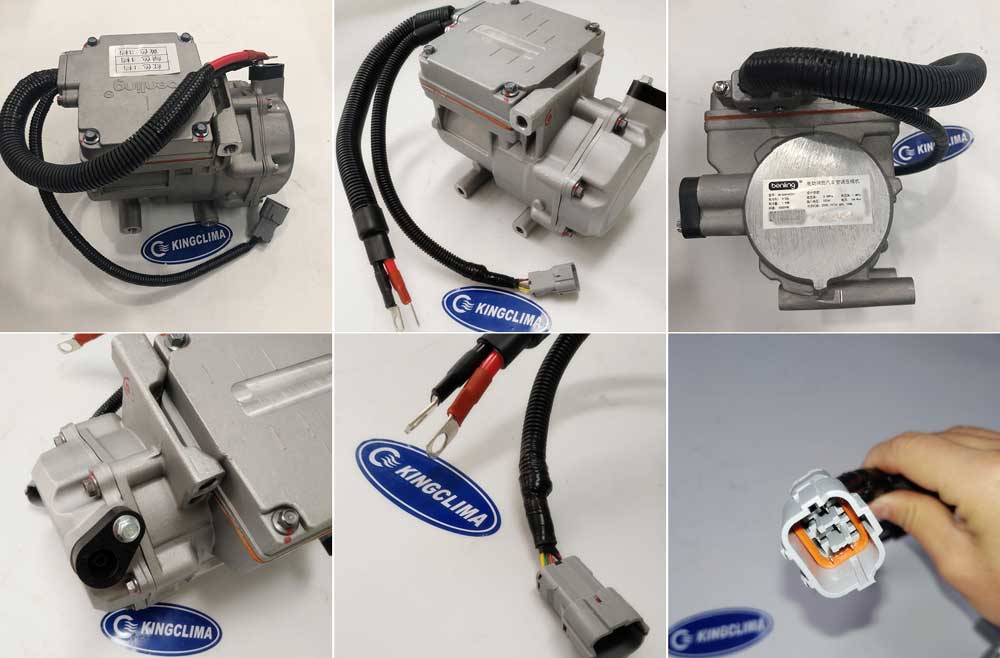

benling 18cc 24v voltage electric compressor for truck cooling solutions
Photo: benling 18cc 24v voltage electric compressor for truck cooling solutions
