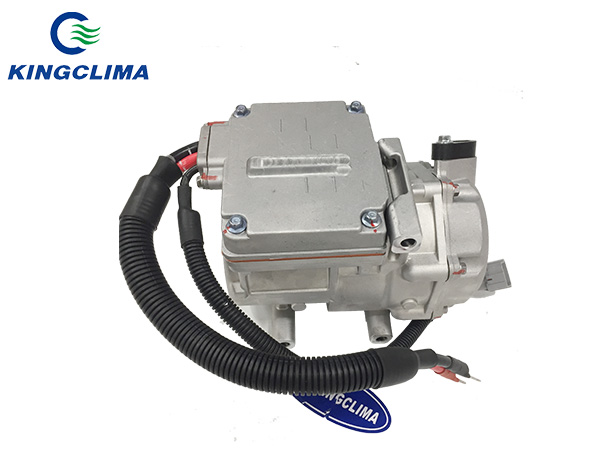

Benling DM18A7 12V 18cc 2.15KW Electric AC Compressor for Truck

Benling DM18A7 12V 18cc 2.15KW Electric AC Compressor for Truck

Model: Benling DM18A7
Refrigerant capacity(3000 rpm): 2.15kw
Voltage: 12V
Discharge Capacity: 18cc/rev
We're here to help: Easy ways to get the answers you need.
Discription

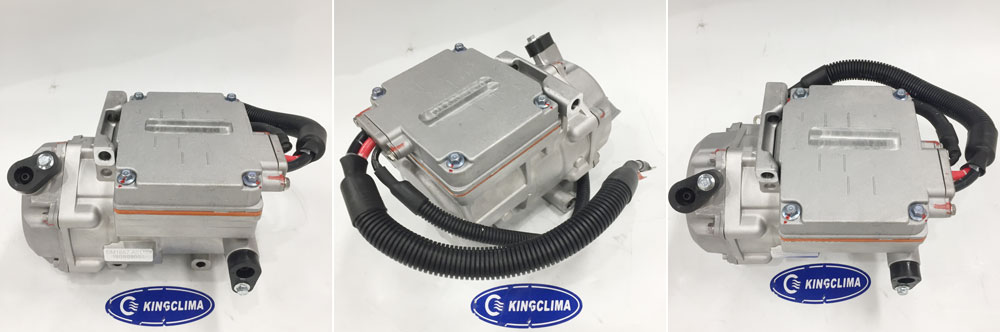

Brief Introduction of Benling DM18A7 Electric Compressor for Car AC


The DM18A7 is 12V 18cc with 2.15KW cooling solutions for truck or car ac electric retrofitted. It is mostly used for truck or car ac units retrofitted into electric parking air conditioners.

KingClima is the leading supplier of bus or truck ac parts in China and cooperate with many parts factories in China as their overseas department to promote the products with a very good price! We warmly welcome your enquiry for this electric compressor for car ac.


Technical Data

Technical of DM18A7 Electric AC Compressor for Truck


Performance(DM18A7)
refrigerant capacity(2000 rpm) 0.92kw /3150 Btu/hr
input power 0.49 KW
current 40A
refrigerant capacity(3000 rpm) 1.38kw /4700 Btu/hr
input power 0.74 KW
current 60A
refrigerant capacity(4500 rpm) 2.15kw /7300 Btu/hr
input power 1.15 KW
current 96A
test condition Pd/Ps=1.47/0.196 Mpa(G) SC=5℃  SH=10℃
Usable range
evaporated temperature 2 °F ~  70°F
condenser temperature 77 °F ~  167°F
compression ratio 8.0 MAX
refrigerant R134a
start temperature -26 °F ~ 158 °F
working temperature -26 °F ~ 212 °F
storing temperature -40 °F ~ 221 °F
Compressor parameter
discharge capacity 18.0 cc/rev
weight 5.4kg
oil charge 100cc  PVE oil
refrigerant capacity 650cc
rotated speed rang 1800rpm---4500 rpm
safety valve pressure 4.0 Mpa
cover protection level IP67
motor coil temperature 248°F MAX
discharge temperature 239°F MAX
Motor parameter
motor type PMSM (permanent magnet synchronous motor
rated tortue 2.30 Nm
max tortue refer to diagram
Drive parameter
max power 1600W
working frequency 30HZ-100HZ
over heating protection 212°F
low voltage protection 10V
over voltage protection 16V
soft hardware overload yes
control method (common way) 1, pwm  2,gear 3,can 4-----
