Highly EVS34 Electric Compressor for Bus AC

Model: EVS34/EVS24
Voltage: DC(150V-420V) or DC(400V-720V)
Speed range( rpm): 2000-6000
We're here to help: Easy ways to get the answers you need.
Discription

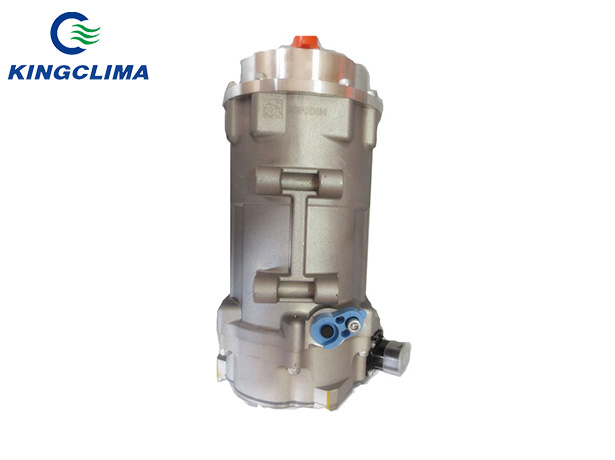

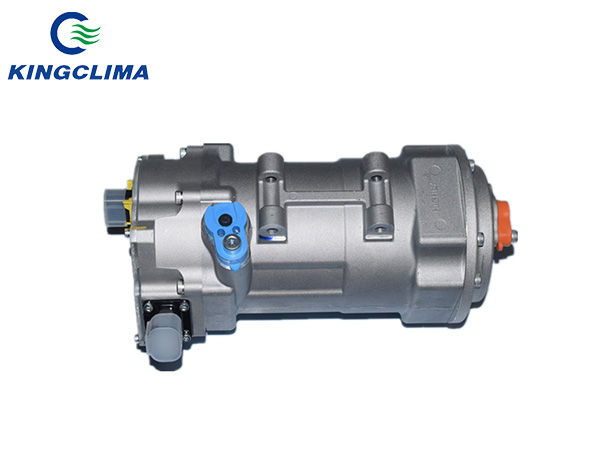

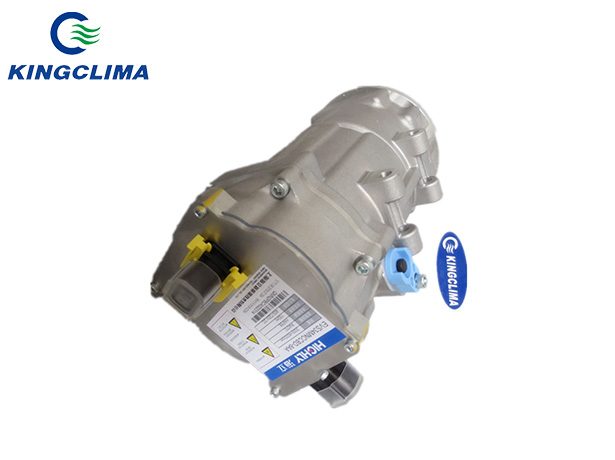

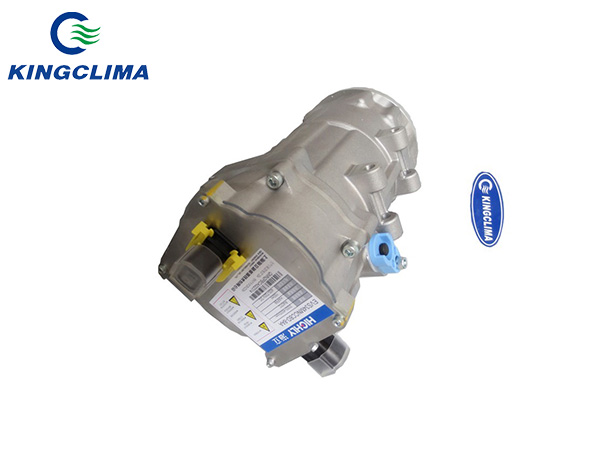

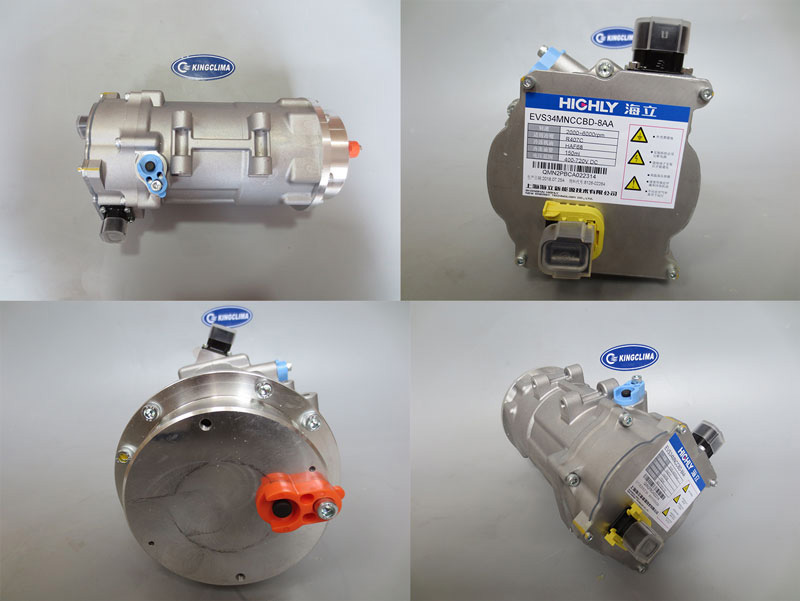

Brief Introduction of KingClima Highly EVS34 Electric Bus AC Compressor


Highly EVS34 compressor is for use for electric bus air conditioners with a competitive price for your best cooling solutions. For the electric compressor for bus ac, our KingClima E series electric bus ac use two sets of Highly EVS34 for it.

KingClima is the leading supplier of bus ac parts in China and we can provide customers one-stop solutions for their bus ac after sales service.

Technical

Technical of Electric Bus AC Compressor


Model EVS24C EVS34C
Refrigerant R407C
Displacement( cc/rev) 24.0 34.0
Power type DC(150V-420V) or DC(400V-720V)
Speed range( rpm) 2000-6000
Communication protocol CAN2.0B or PWM
Operation Environment Temperature(°C) -40-80
Oil type POE,HAF68(100ml) POE,HAF68(150ml)
Max. Cooling Capacity (W) 8200 11000
COP(W/W) 3.0 3.0

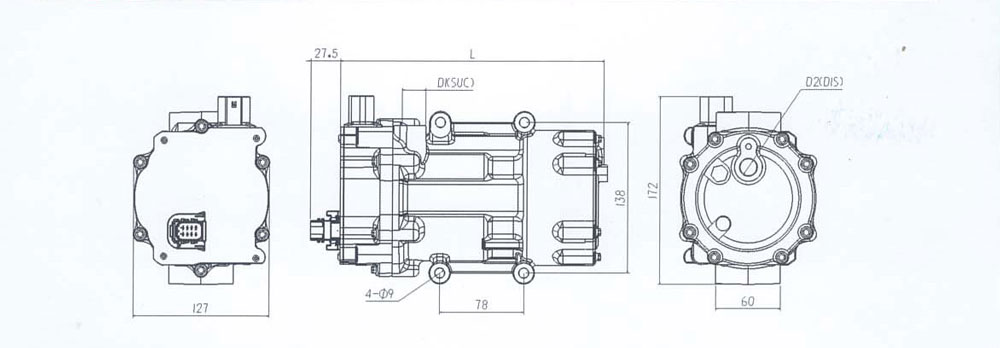

L(mm) 245 252
D1(mm) 18.3 21.3
D2(mm) 15.5
Weight(kg) 6.9 7.5
