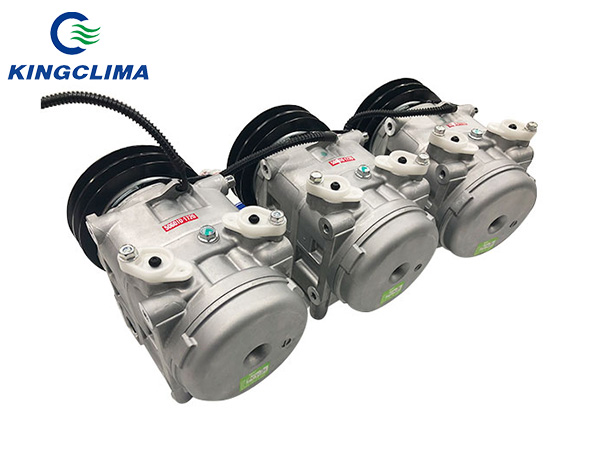

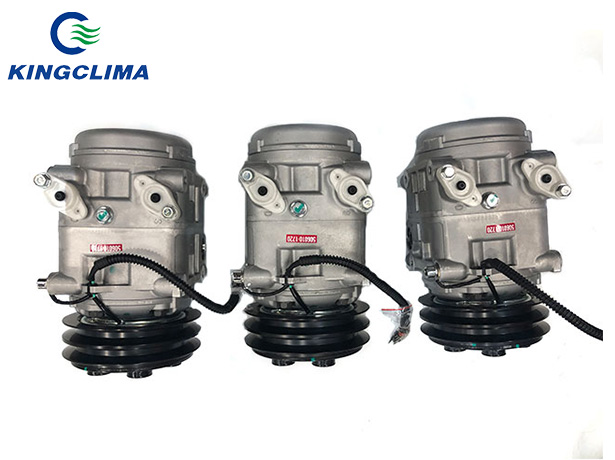

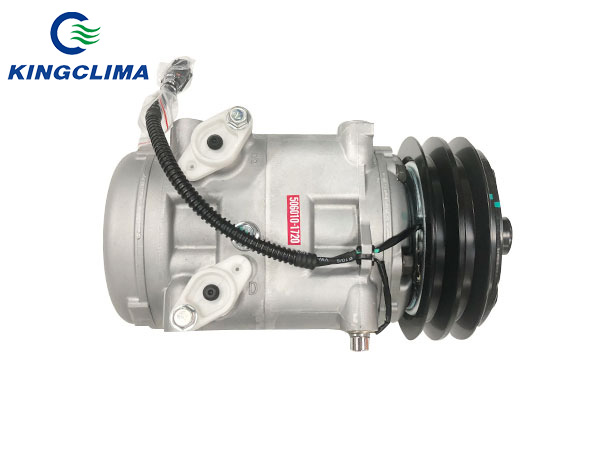

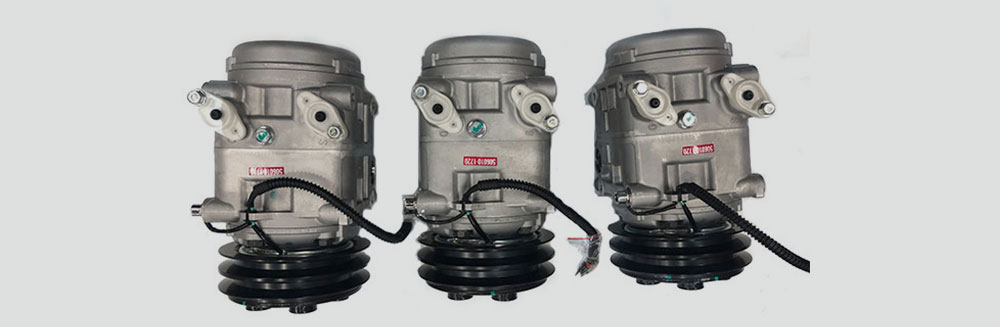

Valeo compressor TM31
Model:
TM31 (DKS-32)
Technology:
Heavy Duty Swash Plate
Displacement:
313 cm³ ⁄ rev
Number of cylinders:
10 (5 double-headed pistons)
Revolution range:
700 – 6000 rpm
Direction of rotation:
Clockwise (viewed from clutch)
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Brief Introduction of Valeo tm31
KingClima can provide the Valeo tm31hd compressor with high quality and best price for customers. Our customers are mainly from bus ac repair field and also would like to buy the remanufactured bus ac compressors. For TM31 compressor, we have China made model and original new type for choice. Both types have a very competitive price than the market.
OEM Code of TM31 Compressor
QUE:QP31-1210
ICE:2521210
SELTEC:488-46510
Spheros:014-00093-000
TM31 (2B ; Ø 158MM ; 24V) Catalog Number:
Thermo King
102-633, 102633, 10-2633, 1020633
Sutrak
240103024, 24.01.03.024
48846530
500326851
500386851
50143
5050002
5060101720
755001106
99469367
TM31 (2B ; Ø 158MM ; 24V)
Thermo King
102-736, 102736, 10-2736, 1020736
Sutrak
240103024, 24.01.03.024
OE:
48846550
50182
5050095
5060101830
103-46530, 10346530
2521212
Video of Valeo TM31
Technical of Valeo TM31 Compressor
| Model | TM31 (DKS-32) |
| Technology | Heavy Duty Swash Plate |
| Displacement | 313 cm³ ⁄ rev |
| Number of cylinders | 10 (5 double-headed pistons) |
| Revolution range | 700 – 6000 rpm |
| Direction of rotation | Clockwise (viewed from clutch) |
| Refrigerant | HFC-134a |
| Bore | 36.0 mm |
| Stroke | 30.7 mm |
| Lubrication system | Gear pump |
| Shaft seal | Lip seal type |
| Oil | ZXL100PG PAG OIL (500 cm³) |
| Weight | 9.5 kg (w/o clutch) |
| Dimensions | 278.5 – 143 – 178 mm (w/ clutch) |
| Mounting | Direct (side or base) |
