SPAL Condenser Fan VA01-BP70-VLL-79S 24V
Brand Name:
SPAL Fan
OE NO. :
VA01-BP70-LL-79S
Voltage:
24V
Weight :
2.6KG
Working Temp :
-40℃ - 85℃
Noise :
Less 78dB (A)
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Brief Introduction of va01-bp70-ll-79s
The oem code of va01-bp70-ll-79s and va01-bp70-vll-79s is bus ac condenser fan electric 24V voltage with different working life and different price. KingClima provide the original new condenser fan with 2 years warranty.

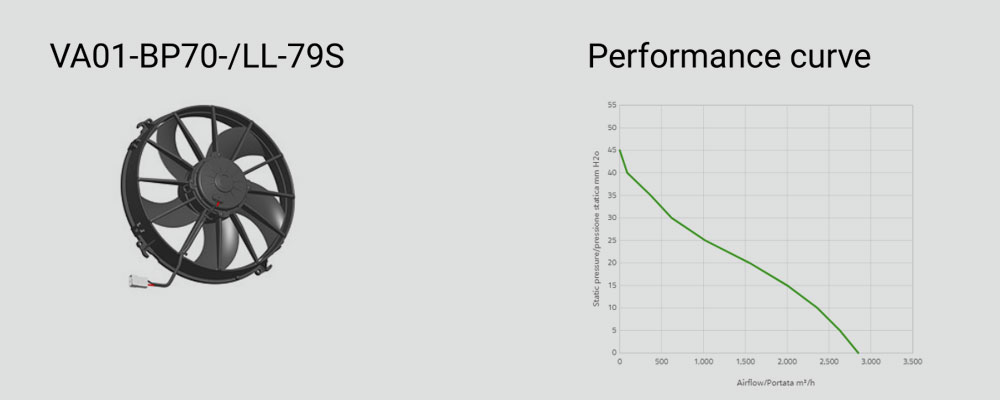

Technical of bus ac condenser fan electric va01-bp70-ll-79s
| Static pressure | Airflow | Current input | Airflow | Static pressure |
| mm H20 | m³/h | A | CFM | in H20 |
| 0 | 2850 | 8.5 | 1682 | 0 |
| 5 | 2630 | 8.9 | 1552 | 0.2 |
| 10 | 2360 | 9.3 | 1392 | 0.4 |
| 15 | 2000 | 9.5 | 1180 | 0.6 |
| 20 | 1550 | 9.8 | 915 | 0.8 |
| 25 | 1020 | 10 | 602 | 1 |
| 30 | 620 | 10.3 | 366 | 1.2 |
| 35 | 370 | 11 | 218 | 1.4 |
| 40 | 90 | 12 | 53 | 1.6 |
