SPAL Condenser Fan VA07-AP7/C-31A

Brand Name: SPAL Fan
IP Rating: IP68
Fan Blade Ø: 225mm (9")
Maximum Airflow (at zero Static Pressure): 596CFM (1010m³/h)
We're here to help: Easy ways to get the answers you need.
Description

Introduction of  Spal Fans VA07-AP7/C-31A

Spal va07-ap7/c-31a 12v sold by KingClima has high stability, and durable, even in the very harsh working environment can also operate normally.
In addition, the fan is also waterproof.
Picture Show

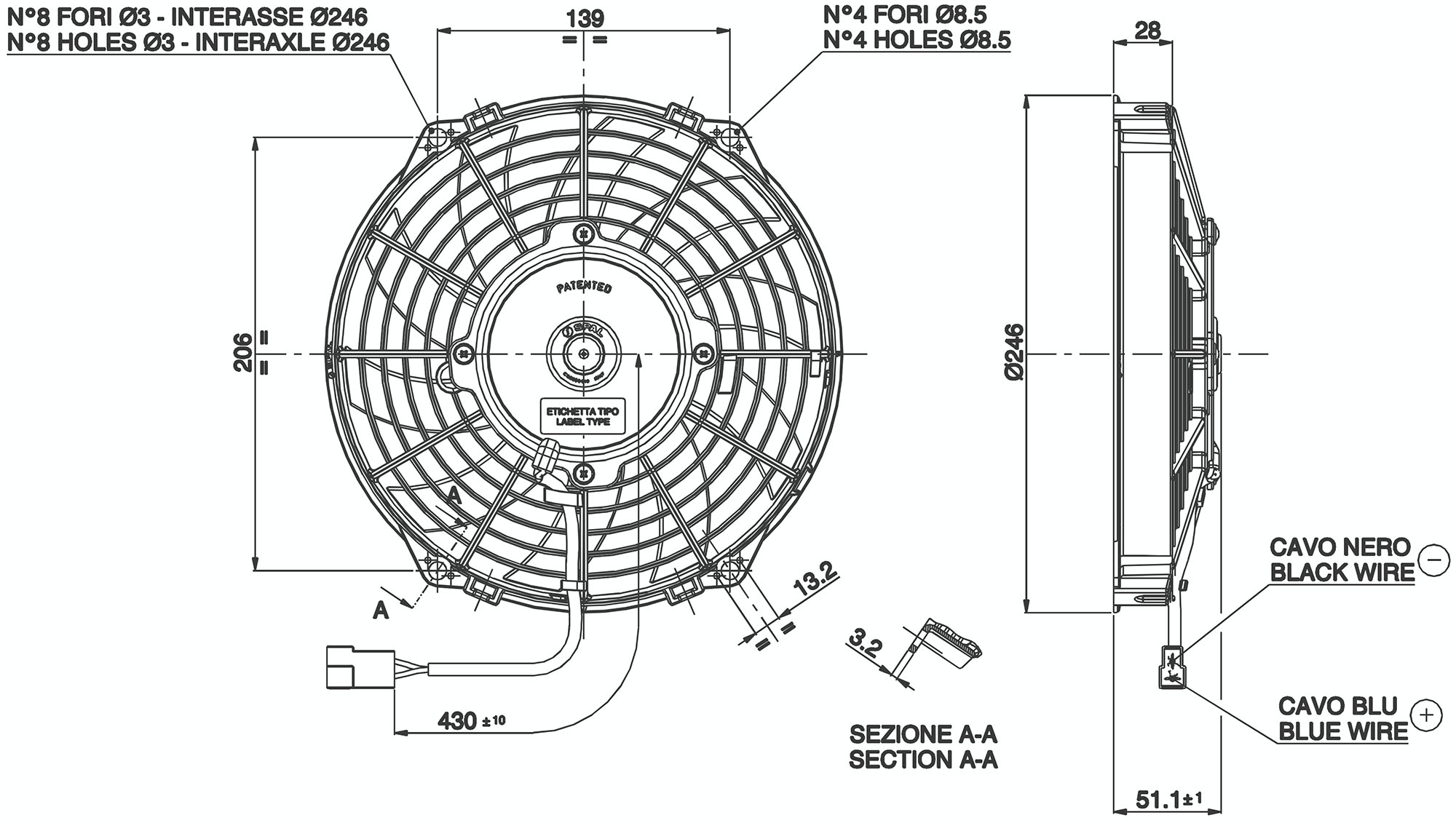

Drawing of spal va07-ap7/c-31aVA07-AP7C-31-KingClima

Parameter

Technical of va07-ap7/c-31a 12v

Maximum Airflow (at zero Static Pressure) 596CFM (1010m³/h)
Fan Blade Ø 225mm (9")
Standard Features Waterproof motor, IP 68
Life Long life
Warranty 12 Months Guarantee
Operating Voltage 12v (tested at:13v)
IP Rating IP68
SPAL Type/Description VA07-AP7/C-31A
  /C: C Class 5000hr motor
Airflow Direction Suction
Mounting Bolt/Screw M5 bolt
Mounting Torque 3(+1/-0) Nm
