SPAL Condenser Fan VA07-BP12/C-58S

Brand Name: SPAL Fan
OE NO. : VA07-BP12/C-58S
Maximum Airflow (at zero Static Pressure): 696CFM (1180m³/h)
Fan Blade Ø: 225mm (9")
We're here to help: Easy ways to get the answers you need.
Description

A brief introduction to VA07-BP12/C-58S

KingClima sells spal va07-bp12/c-58s condensor fans whose quality is guaranteed. They are all original products with favorable price. Please feel free to purchase.
Picture Show

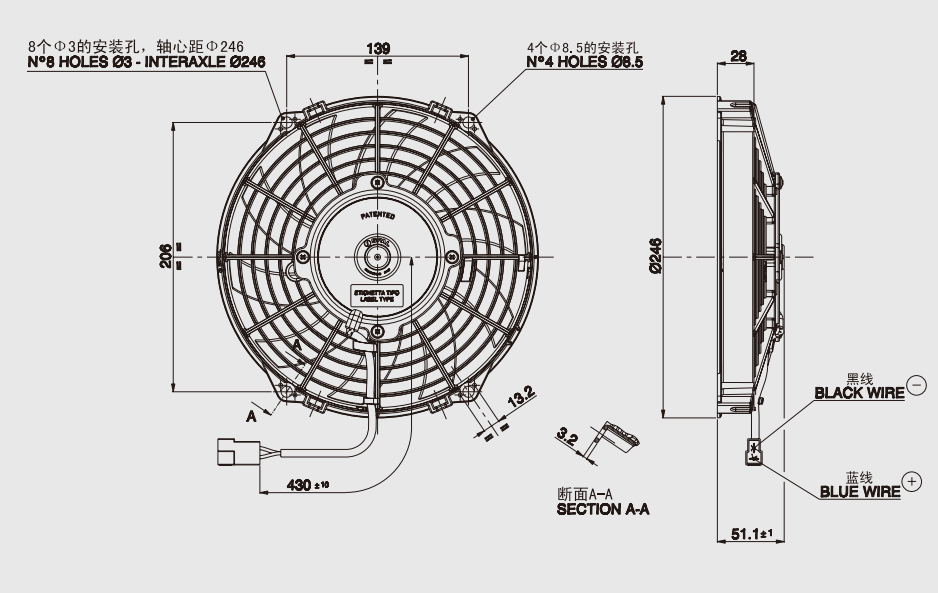

The drawing of VA07-BP12/C-58S is shown below:

Parameter

Technical of Spal va07-bp12/c-58s 24v

Maximum Airflow (at zero Static Pressure) 696CFM (1180m³/h)
Fan Blade Ø 225mm (9")
Standard Features Waterproof motor, IP 68
Noise Low noise
Life Long life
Warranty 12 Months Guarantee
Operating Voltage 24v (tested at:26v)
IP Rating IP68
SPAL Type/Description VA07-BP12/C-58S
Airflow Direction Blowing
Mounting Bolt/Screw M5 bolt
Mounting Torque 3(+1/-0) Nm
