SPAL Condenser Fan VA09-BP12-C-27A 24V
Brand Name:
SPAL Fan
OE NO. :
VA09-BP12-C-27A 24V
Voltage:
24V
Electric consumption (A):
4,5A
Air flow (m3/h):
1550 m³/h
Diameter propeller:
Ø 280mm
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags

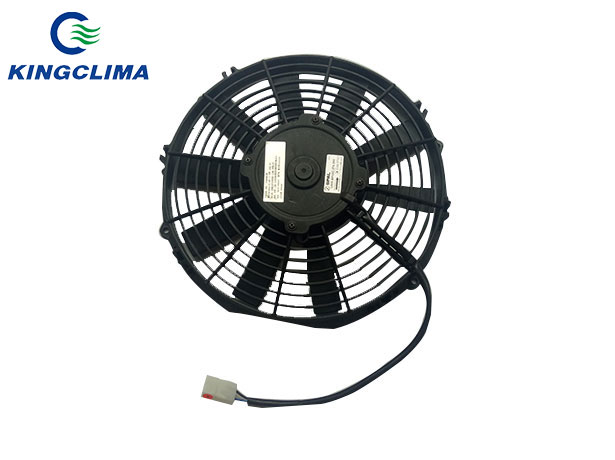

Brief Introduction of spal va09-bp12/c-27a 24v
The va09-bp12/c-27a 24v bus ac condenser fan (Autoclima: 30-3150-04 or OE: VT1152A , 1550 310 280 52) for bus ac unit with best price. ) is original new one for bus ac unit. KingClima as the leading supplier of bus ac parts in China can supply two kinds of bus ac condenser fans:
China made version: with very best price and high quality.
Original new version：SPAL, EBM, Thermo King, Carrier...
The OEM Code of va09-bp12/c-27a 24v
Spal
VA09-BP12/C-27A, VA09BP12C27A, VA09BP12C27A
Autoclima
30-3150-04, 30315004, 30-315004
OE:
VT1152A , 1550 310 280 52
.jpg)

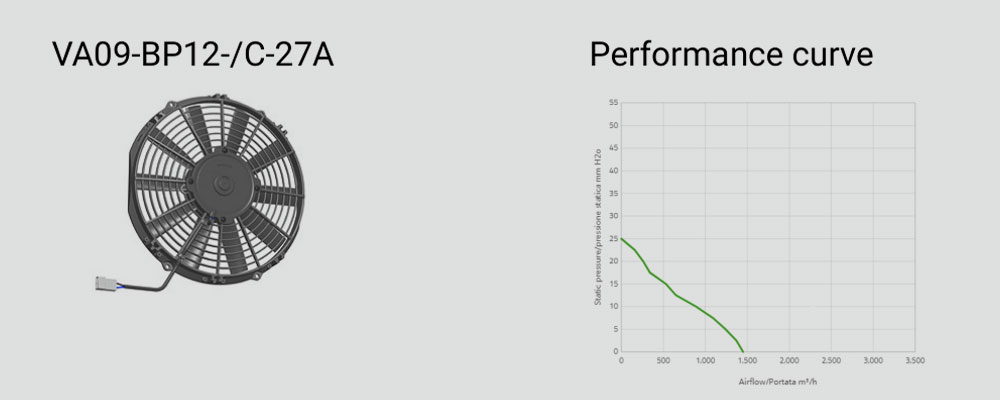

Technical of spal va09-bp12/c-27a 24v
| Static pressure | Airflow | Current input | Airflow | Static pressure |
| mm H20 | m³/h | A | CFM | in H20 |
| 0 | 1450 | 4.6 | 856 | 0 |
| 2.5 | 1370 | 4.6 | 808 | 0.1 |
| 5 | 1240 | 4.7 | 732 | 0.2 |
| 7.5 | 1090 | 4.7 | 643 | 0.3 |
| 10 | 890 | 4.6 | 525 | 0.4 |
| 12.5 | 650 | 4.4 | 384 | 0.5 |
| 15 | 530 | 4.6 | 313 | 0.6 |
| 17.5 | 340 | 4.6 | 201 | 0.7 |
| 20 | 260 | 4.7 | 153 | 0.8 |
| 22.5 | 160 | 4.6 | 94 | 0.9 |
| 25 | 0 | 4.6 | 0 | 1 |
