SPAL Condenser Fan VA18-BP70LL-86A

Brand Name: SPAL Fan
OE NO. : va18-bp70ll-86a
Voltage: 24V
Warranty: One Year
We're here to help: Easy ways to get the answers you need.
Description

Introduction of VA18-BP70LL-86A Fan

The spal va18-bp70/ll-86a 24v fan uses American and Dutch automotive-grade chips. Compared with the resistance of the same industry, the stability is increased by 10% at least, the temperature resistance reaches 150 degrees, and the automatic protection function is set at 120 degrees.
Parameter

Technical characteristics for va18-bp70/ll-86a 24v Fan

Fan Part # VA18-BP70/LL-86A
Total Amp Draw 22
Total Depth 3.39"
Overall Height 16.30"
Overall Width 15.75"
Voltage 24
Picture Show

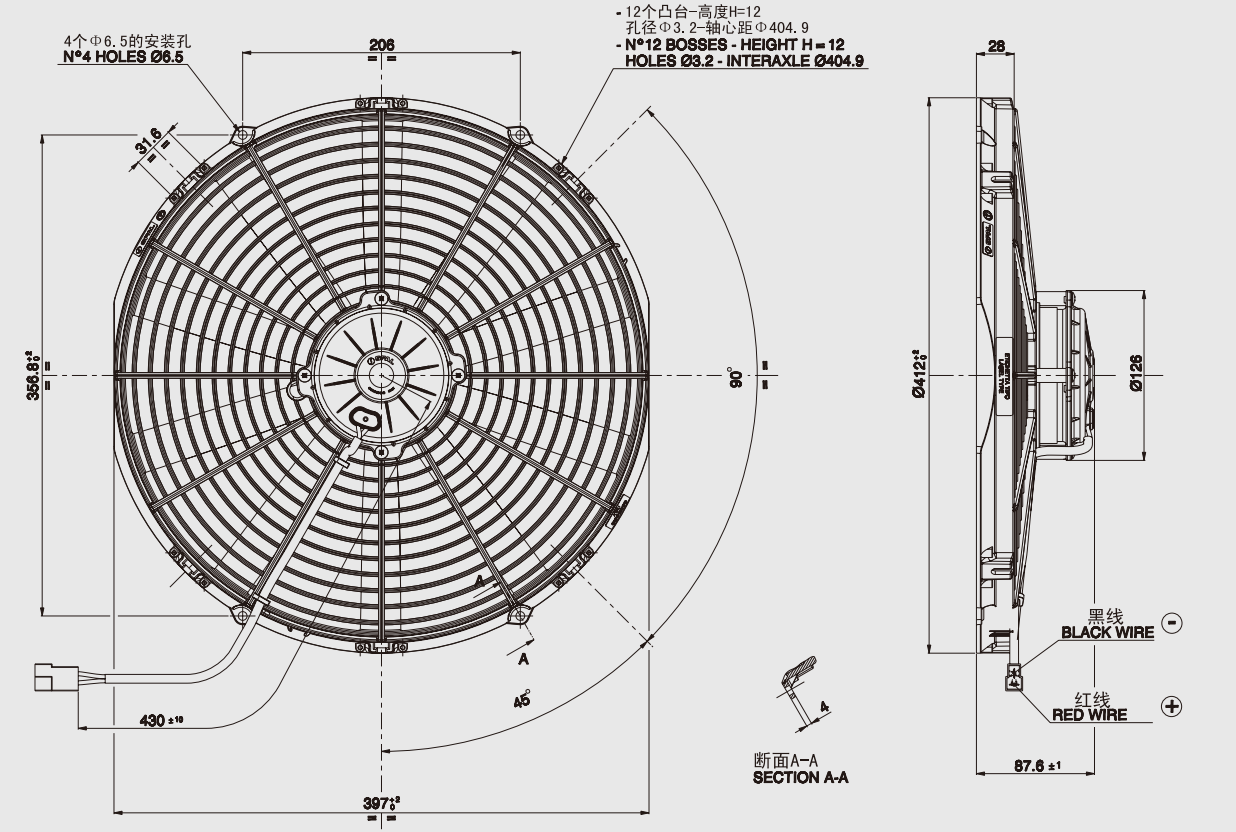

Drawing of spal va18-bp70/ll-86a fans

VA18-BP70LL-86A
