SPAL Condenser Fan VA89-BBL328-94A

Brand Name: SPAL Fan
Diameter: 305mm
Max fan speed: 3400rpm
Min fan speed: 850rpm
Weight: 2.30kg
We're here to help: Easy ways to get the answers you need.
Description

Introduction of VA89-BBL328-94A

The va89-bbl328-94a fan is used in passenger car air-conditioning refrigeration systems. The va89-bbl328-94a fan has low noise, large air volume, low energy consumption and high efficiency during operation.

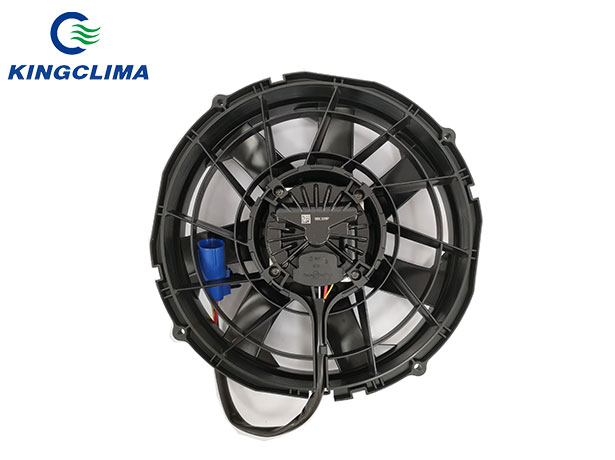

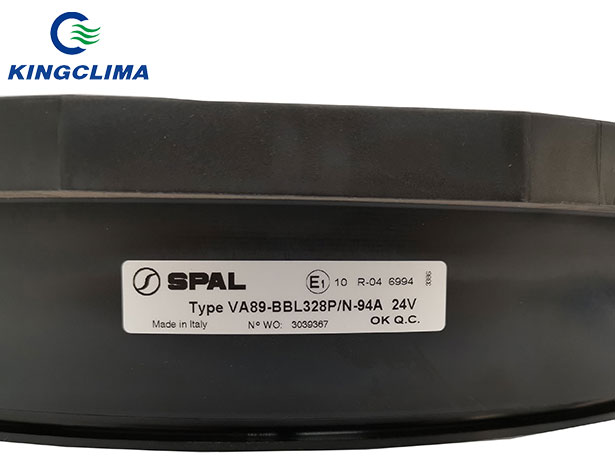

Picture Show

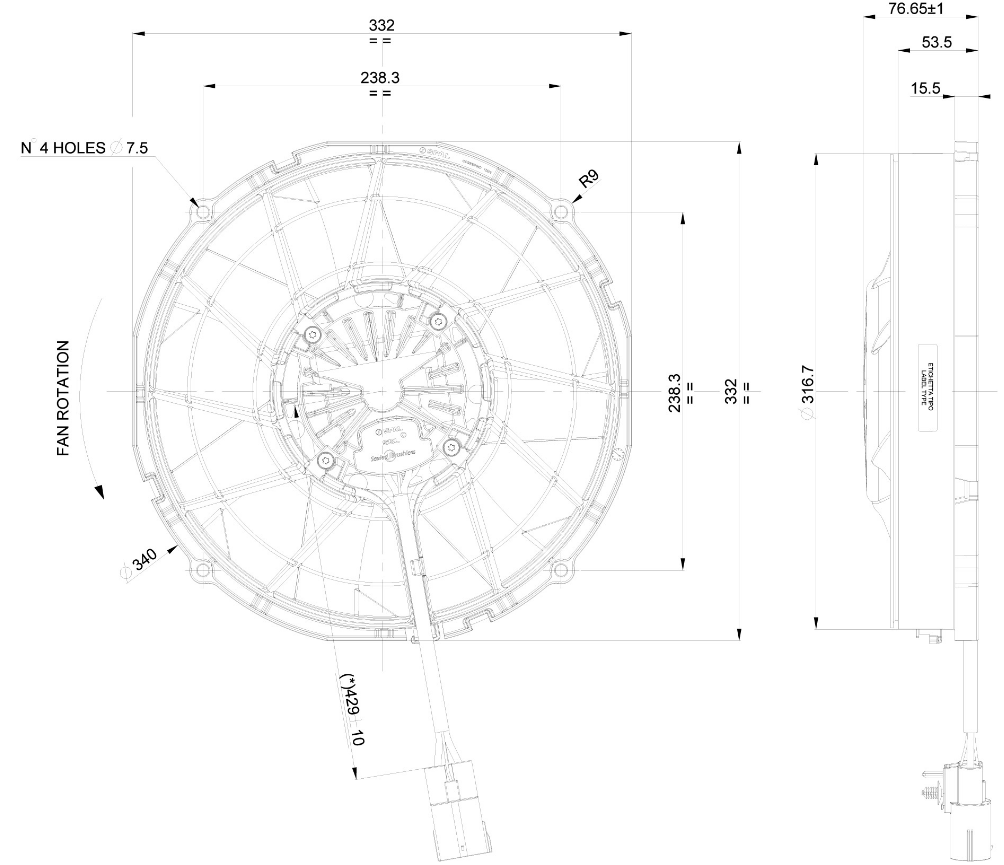

Drawing of VA89-BBL328-94A
Parameter

Technical Characteristics for VA89-BBL328-94A

Model number VA89-BBL328P/N-94A
Diameter 305mm
Max fan speed 3400rpm
Min fan speed 850rpm
Sound pressure level 75,7 - at 1 m dBA
Weight 2,30kg
Operating supply voltage range 16 .. 32V at the Drive Connector
Supply voltage to reach max speed 26 .. 32V at the Drive Connector
Operating ambient temperature range -40 .. +110°C
Speed derating threshold +95 (*)°C
Storage temperature range -40 .. +125°C
Lifetime up to 40000h hours depending on mission profile
Time from 0 rpm to max speed 11s
Load dump protection ( Pulse 5b ) 65 V- Pulse peak voltage ( Us* ) - ISO16750 - 2:2010
Reverse polarity protection ISO 16750-1functional status class C - device fully functional after connecting the polarity
