SPAL Condenser Fan VA89-BBL342-94A

Brand Name: SPAL Fan
Power: 300w
RPM: 800 ~ 3400 RPM
Maximum Air Volume: 3050.0 M3h, 1794.0 CFM
We're here to help: Easy ways to get the answers you need.
Description

Introduction of  VA89-BBL342-94A

The Fan of va89-bbl342-94a is suitable for large and medium-sized passenger cars. The va89-bbl342-94a fan is made of plastic material with light weight, which can effectively improve the operating efficiency.

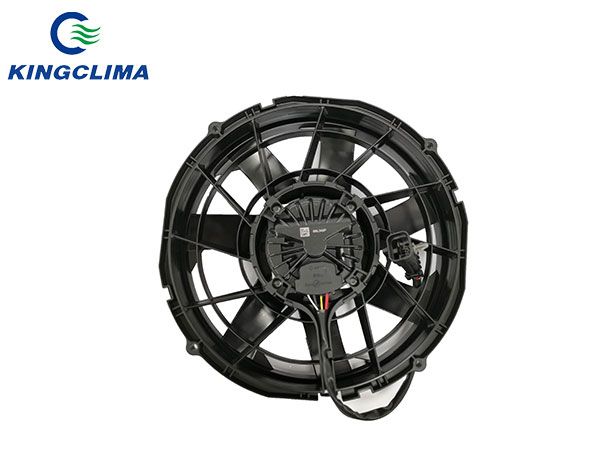

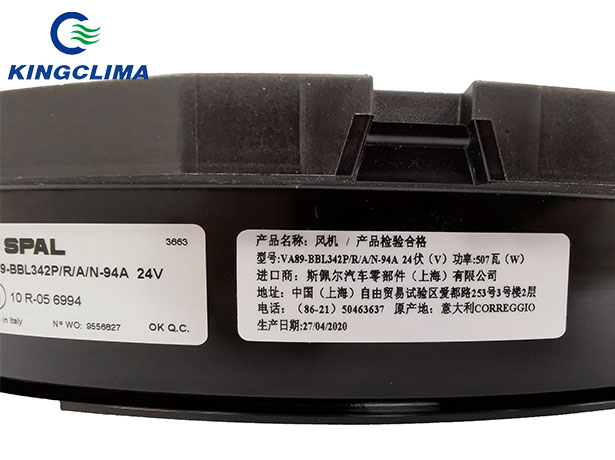

Picture Show

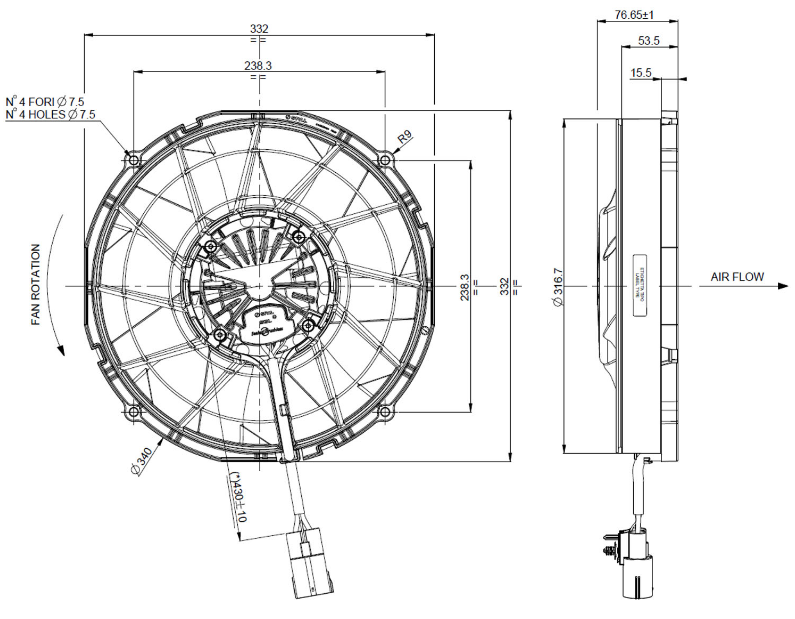

Drawing of VA89-BBL342-94A

Parameter
Technical characteristics for VA89-BBL342-94A
Model Number VA89-BBL342P/N-94A
Airflow Max 3674 m3/hr
Weight 2.2 kg
Blade Diameter ∅ 305mm
Housing Diameter ∅ 332mm
Housing Depth 76.65mm
Operational Fan Speed 800 - 4100rpm
Voltage 24v
Current Continuous 18.8 - 23.5a
Power Consumption 451.2 - 564w
Protection IP6K9K and IP68 Certified
