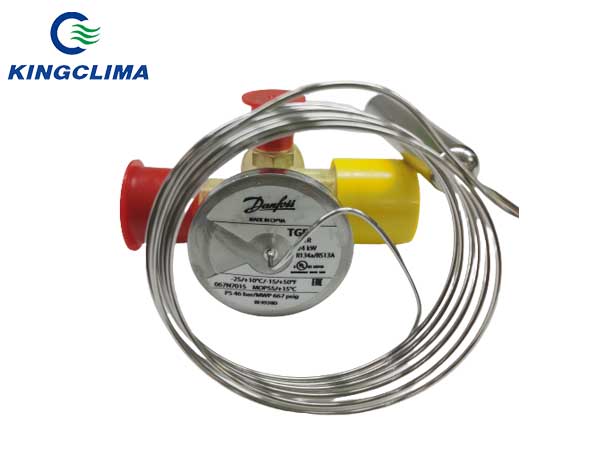

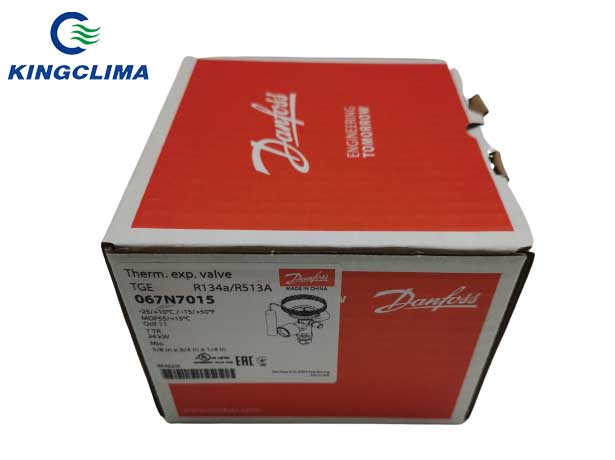

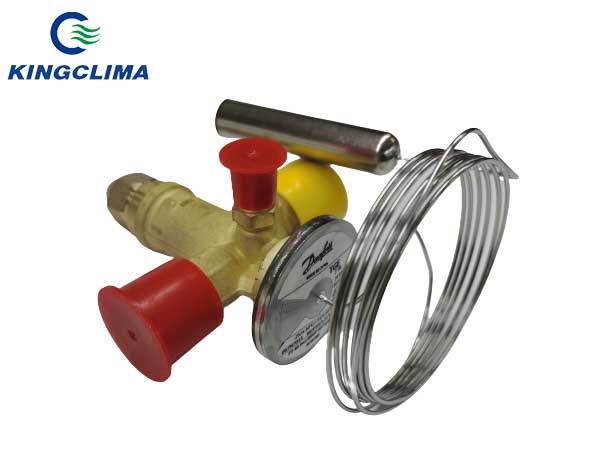

Danfoss 067N7015 Thermostatic Expansion Valves
Danfoss 067N7015 Thermostatic Expansion Valves
Danfoss 067N7015 Thermostatic Expansion Valves

Danfoss 067N7015 Thermostatic Expansion Valves

Model : Danfoss 067N7015
Inlet size [in] : 5/8 IN
Outlet size [in] : 3/4 IN
We're here to help: Easy ways to get the answers you need.
DESCRIPTION
KingClima Supply Danfoss 067N7015 Thermostatic Expansion Valves and other more bus ac parts , such as Compressor, Magnetic Clutch, Evaporator Blower, Condenser Fan, Expansion Valve, Fittings, Control Panel, Water pump, Pressure Switch, Air purifiers, Alternator and so on.

Brief description of Danfoss 067N7015 Thermostatic Expansion Valves


Approval C UL US LISTED
EAC
LLC CDC TYSK
Balanced port [Yes/No] Yes
Body material Brass
Bulb temperature max. [ºC] 150 °C
Bulb temperature max. [ºF] 302 °F
Capillary tube length [in] 59 in
Capillary tube length [mm] 1500 mm
Connection material Brass
Direction Straightway
Element temperature max. [°C] 110 °C
Element temperature max. [°F] 230 °F
Equalization connection type MIO
Equalization size [in] 1/4 IN
Flow direction Bi-flow
Flow direction indicator Embossed 1-way arrow
Identical product 067N7023
Inlet connection type MIO
Inlet size [in] 5/8 IN
Max. Working Pressure [bar] 46 bar
Max. Working Pressure [psig] 667 psig
MOP Point [psig] MOP 55
MOP Point [°C] 15 °C
MOP Point [°F] 60 °F
Orifice capacities [kW] 24 kW
Orifice capacities [TR] 7 tons
Orifice size 11

Outlet connection type MIO
Outlet size [in] 3/4 IN
Packing format Multi pack
Parts included Bulb strap
Pressure equalization Externally equalized
Product accessories TXV accessories
Product description Thermostatic Expans. Valve
Product group Expansion valves
Product name Thermostatic expansion valve
Rated cap. cond. Range N [IMP] tcond=100 °F
tevap=40 °F
tliq=98 °F
Rated cap. cond. Range N [SI] tcond=38 °C
tevap=4.4 °C
tliq=37 °C
Refrigerants R134a
R513A
Static Superheat (SS) [°C] 4 °C
Static Superheat (SS) [°F] 7.2 °F
Superheat setting Adjustable
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -25 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -15 °F
Type TGE
UL approved refrigerants R134a
R513A
Valve body temp. max. [°C] 150 °C
Valve body temp. max. [°F] 302 °F
