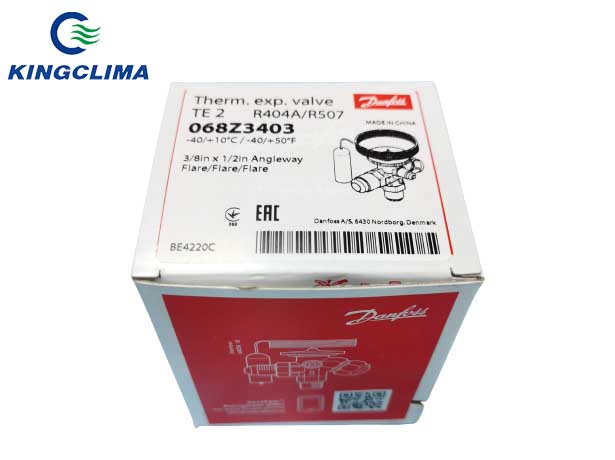

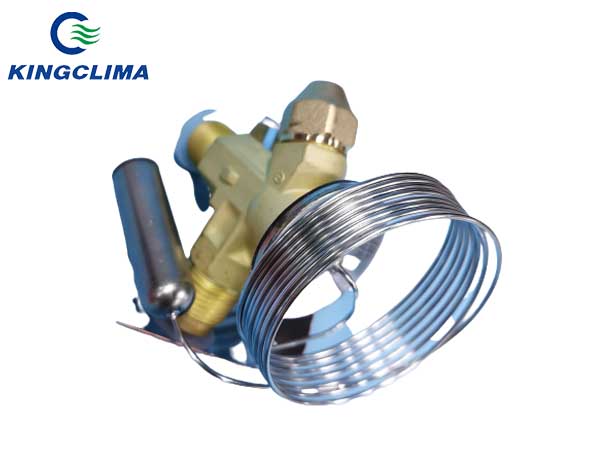

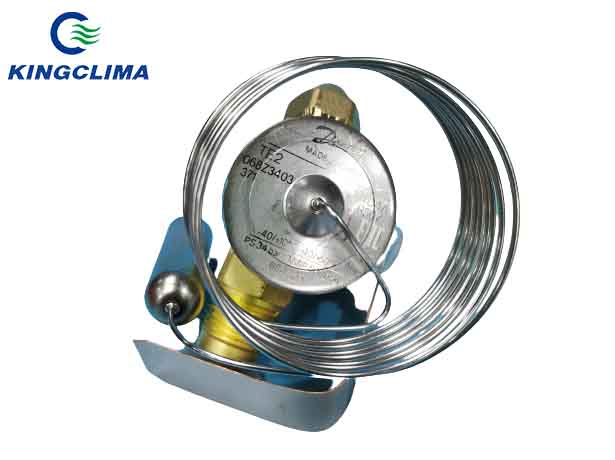

Danfoss 068Z3403 Thermostatic Expansion Valves
Danfoss 068Z3403 Thermostatic Expansion Valves
Danfoss 068Z3403 Thermostatic Expansion Valves

Danfoss 068Z3403 Thermostatic Expansion Valves

Model : Danfoss 068Z3403
Inlet size [in] : 3/8 IN
Inlet connection type : FLARE
​​​​​​​Outlet size [in] : 1/2 IN
We're here to help: Easy ways to get the answers you need.
KingClima Supply Danfoss 068Z3403 Thermostatic Expansion Valves and other more bus ac parts , such as Compressor, Magnetic Clutch, Evaporator Blower, Condenser Fan, Expansion Valve, Fittings, Control Panel, Water pump, Pressure Switch, Air purifiers, Alternator and so on.

Brief description of Danfoss 068Z3403 Thermostatic Expansion Valves

Gross weight 0.32 Kg
Net weight 0.29 Kg
EAN 5702422114116
Approval EAC
Body material Brass
Capillary tube length [in] 59 in
Capillary tube length [mm] 1500 mm
Category Art. 4, par. 3
Connection material Brass
Direction Angleway
Equalization connection type FLARE
Equalization size [in] 1/4 IN
Factory setting (FS) [°C] 6 °C
Flow direction Bi-flow with orifice 01-05
Flow direction indicator Embossed 1-way arrow
Fluid Group II
Identical product 068Z3555
Inlet connection type FLARE
Inlet size [in] 3/8 IN
Max. Working Pressure [bar] 34 bar
Max. Working Pressure [psig] 500 psig
Outlet connection type FLARE
Outlet size [in] 1/2 IN
Packing format Multi pack
Parts included Bulb strap
Parts Program name T2/TE2
Pressure equalization Externally equalized
Product accessories TXV accessories
Product family name T2
Product Group Expansion valves
Product name Thermostatic expansion valve
Product type TE 2
Quantity per packing format 20 pc
Rated cap. cond. Range N [IMP] OS=10.8 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI] OS=6K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Refrigerants R404A/R507
Serviceable TXV spare parts
Static Superheat (SS) [°C] 4 °C
Static Superheat (SS) [°F] 7.2 °F
Superheat setting Adjustable
System line application Liquid line
Temperature range [°C] [Max] 10 °C
Temperature range [°C] [Min] -40 °C
Temperature range [°F] [Max] 50 °F
Temperature range [°F] [Min] -40 °F
