LA 16.0172Y 2B 180

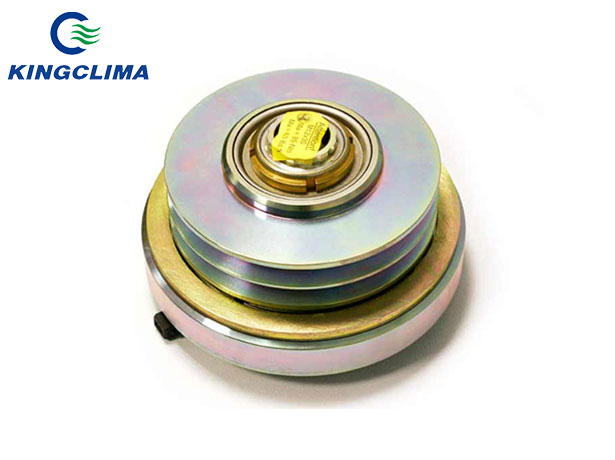

LA 16.0172Y 2B 180 Electromagnetic Clutch for BOCK FKX40/Bitzer 4N/4P Compressor

Model: LA 16.0172Y
Rated Voltage: 12V/24V
Static friction torque: ≥400N.m
Consumed Power: ≤60W
Max speed: 4000r.p.m
Application comp: BITZER 4N/BOCK FK40
We're here to help: Easy ways to get the answers you need.
Description

Brief Introduction of la16.0172y Clutch


La16.0172y clutch is for bock and bitzer compressor.
KingClima provide the la160172y with 2 years warranty.


OEM Code of la160172y clutch


10730267 -
500021243
W02005000

Eberspächer - Sütrak (Carrier)
30,04,02,232
30,04,04,232-00
30.04.02.232
30.04.04.232-00
300402232
300404232-00
8867010001400
88670100014-00
88-67-01-00014-00
1007238

Konvekta
H13-002-578-L
H13-002-578-L-01
H13002578-L
H13002578-L-01
H13002578L
H13002578L-01
H13002578L01

Man (Neoplan-Neoman)
0302.171.10
030217110
36.77954-6031
3677954-6031
36779546031
11007402
11160199


Thermo King
H243010006

Linnig (Kendrion Markdorf)

LA16.172Y
LA16172Y

LA16.0172Y
LA160172Y

Autoclima:
40456160172



Application of La16.0172y


LA16.0172 2G "B" Ø 173

BOCK FKX40/Bitzer 4N/4P Compressor
Parameters
Description LA16.0172 2 Grooves "B" Ø 173
Note Konvecta / Neoplan / Carrier-Sutrak / Thermoking
OEM Clutch Code LA16.0172Y
Voltage 24V
Number of grooves 2
Groove width 2x17 mm
Groove type 2G B
Section Groove (S) 2x16,3 mm
External diameter (a) 2x180 mm
Internal diameter (b) 2x173 mm
OEM Code Coil 01.021.8
Autoclima Code Coil 40456010218
