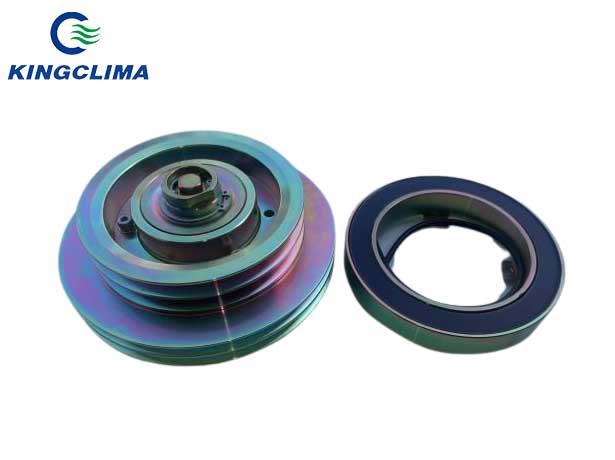

LA16.0149Y 2A2B 254X193mm Linnig Clutch

LA16.0149Y 2A2B 254X193mm Linnig Clutch

Model : LA16.0149Y 2A2B 254X193mm
Application : For bus air conditioning
We're here to help: Easy ways to get the answers you need.
DESCRIPTION

Brief Introduction of LA16.0149Y 2A2B 254X193mm Linnig Clutch :


LA16.0149Y 2A2B 254X193mm Linnig Clutch is high quality and best price from KingClima industry. It is widely used for bus climate control system.

OEM Code of LA16.0149Y 2A2B 254X193mm Linnig Clutch :

8867010003300

Eberspächer -Sütrak (Carrier)

30,04,02,210
30,04,04,210-00
30040421000
30.04.02.210
30.04.04.210-00
300402210
300404210-00
30040421000

Konvekta
H13-003-565-L-01
H13003565L01

Webasto-Spheros
68759A
68759B
68759C

Man(Neoplan-Neoman)
11160194
14024028
81.06630-6075
8106630-6075
81066306075
36779546026
3677954-6026
36.77954-6026

Linnig(Kendrion Markdorf)
LA16.149Y
LA16149Y
LA16.0149Y
LA160149Y

Autoclima:
40456160149


Application:
LA16.0149 2G "A" Ø 254 / 2G "B" Ø 193

PARAMETERS

Technical of LA16.0149Y 2A2B 254X193mm Electromagnetic Clutch :


Description LA16.0149 2 Grooves "A" Ø 254 / 2 Grooves "B" Ø 193
Note Man / Carrier-Sutrak / Webasto
OEM Clutch Code LA16.0149Y
Voltage 24V
Number of grooves 4
Groove width 2x13 mm/2x17 mm
Groove type 2G A/2G B
Section Groove (S) 2x12,7 mm/2x16,3 mm
External diameter (a) 2x260 mm/2x200 mm
Internal diameter (b) 2x254 mm/2x193 mm
OEM Code Coil 01.021.8
Autoclima Code Coil 40456010218
