Bock FKX40/560 TK Compressor for Thermo King Compressor - KingClima

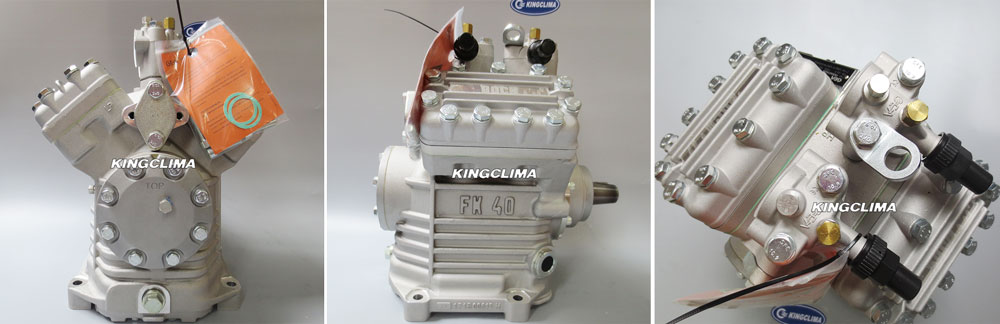

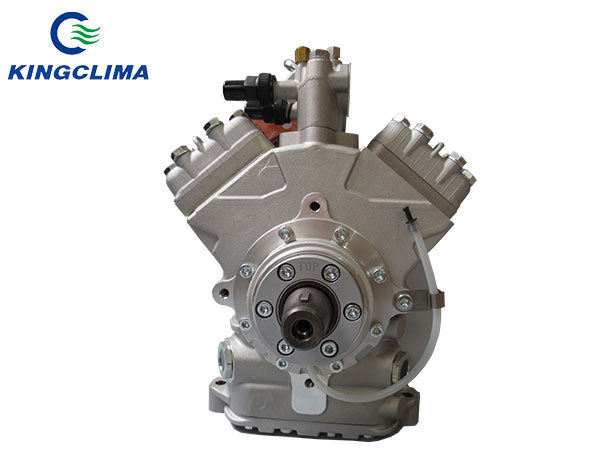

Bock FKX40/560 TK Compressor

Model: Bock FKX40/560 TK Compressor
Compressor refrigeration capacity: 24.00 kW
Drive power: 9.79 kW
Torque: 64.50 Nm
Mass flow: 0.199 kg/s
We're here to help: Easy ways to get the answers you need.
Discription

Brief Introduction of FKX40/560 TK Compressor


It is bock fkx40/560 tk refrigeration units compressor used for thermo king refrigeration with original new model also can provide thermo king compressor rebuild kit model with good price.

KingClima is the leading supplier of bus ac parts replacement and transport refrigeration units parts replacement in China, we not only provide thermo king compressor for sale, but also can provide carrier transicold aftermarket parts with good price.

Technical

Technical of FKX40/560 TK Compressor


Number of cylinders / Bore / Stroke 4 / 60 mm / 49 mm
Swept volume 554 cm³
Displacement (1450 ¹/min) 48,30 m³/h
Mass moment of inertia 0,0043 kgm²
Weight 33 kg
Permissible range of rotation speeds 500 - 2600 ¹/min
Max. permissible pressure (LP/HP) 1) 19 / 28 bar
Connection suction line SV 35 mm - 1 3/8 "
Connection discharge line DV 28 mm - 1 1/8 "
Lubrication Oil pump
Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A FUCHS Reniso Triton SE 55
Oil type R22 FUCHS Reniso SP 46
Oil charge 2,0 Ltr.

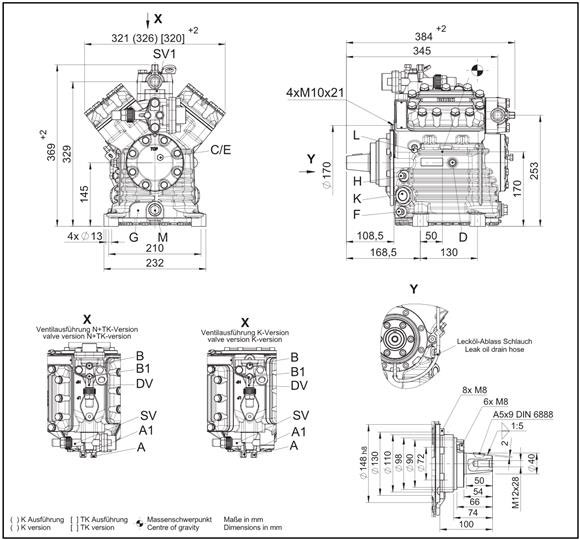

Dimensions Length / Width / Height 384 / 320 / 369 mm
