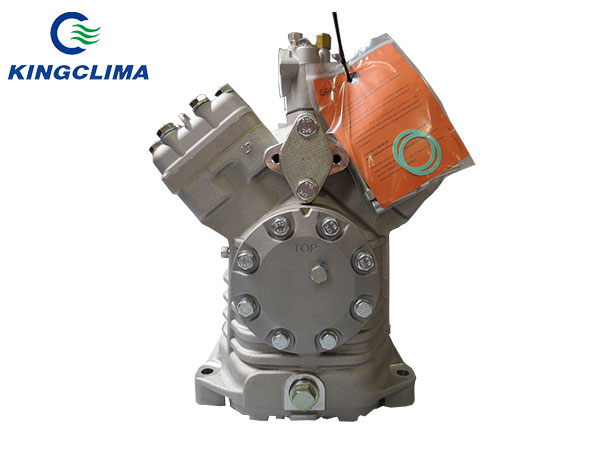

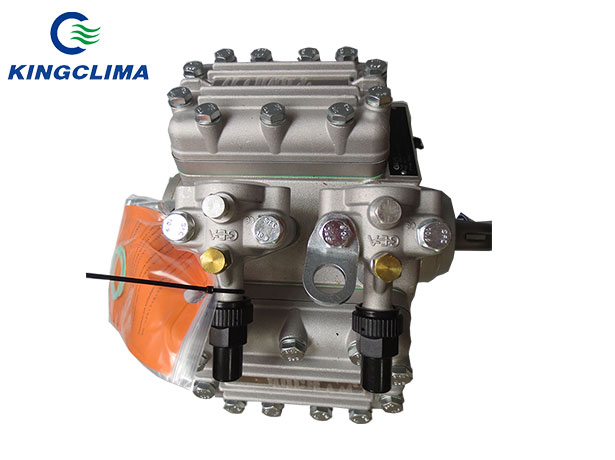

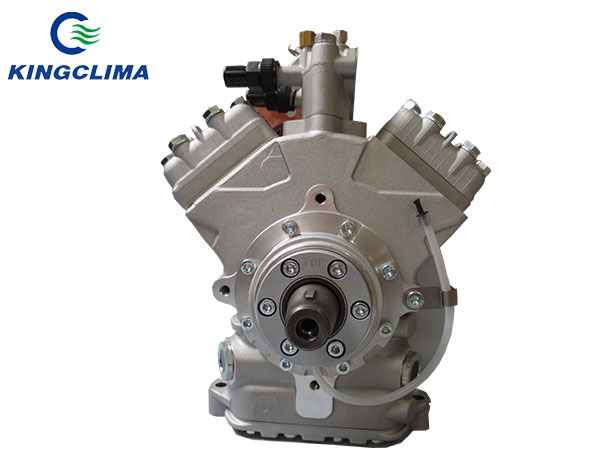

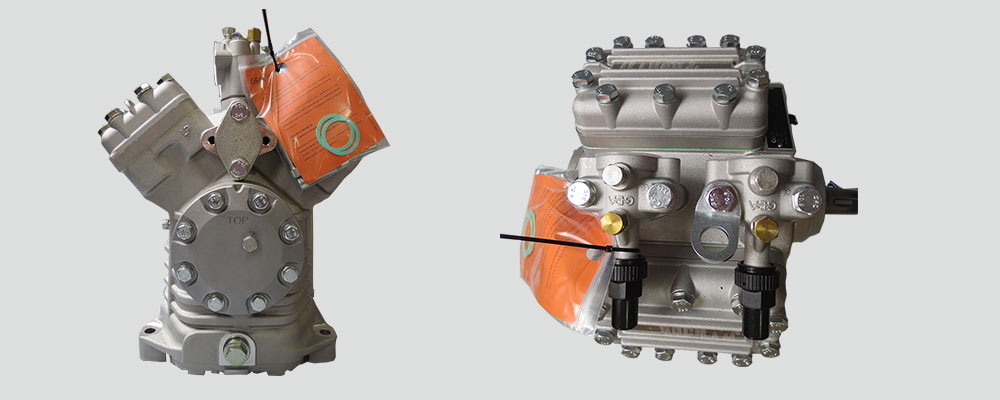

Bock FKX40/390 TK Compressor

Model: Bock FKX40/390TK
Application: Thermo King Refrigeration Units
Compressor refrigeration capacity: 16.70 kW
Drive power: 6.79 kW
Torque: 44.80 Nm
Weight: 34KG
We're here to help: Easy ways to get the answers you need.
DESCRIPTION

Brief Introduction of thermo king compressor fkx40/390


FKX40390tk is for Thermo King refrigeration units with Bock brands. KingClima provide it with a competitive price.

PARAMETERS

Technical of fkx40390 tk compressor


Application Refrigeration & AC
Compressor refrigeration capacity 16.70 kW
Drive power 6.79 kW
Torque 44.80 Nm
Mass flow 0.138 kg/s
Refrigerant R404A, R507
Reference temperature Dew point
Evaporating temperature -10.0 °C
Condensing temperature 45.0 °C
Speed 1450 1/min
Suction gas temperature 20 °C
Subcooling (outside cond.) 0 K
Number of cylinders / Bore / Stroke 4 / 50 mm / 49 mm
Swept volume 385 cm³
Displacement (1450 ¹/min) 33,50 m³/h
Mass moment of inertia 0,0043 kgm²
Weight 34 kg
Permissible range of rotation speeds 500 - 2600 ¹/min
Max. permissible pressure (LP/HP) 1) 19 / 28 bar
Connection suction line SV 28 mm - 1 1/8 "
Connection discharge line DV 22 mm - 7/8 "
Lubrication Oil pump

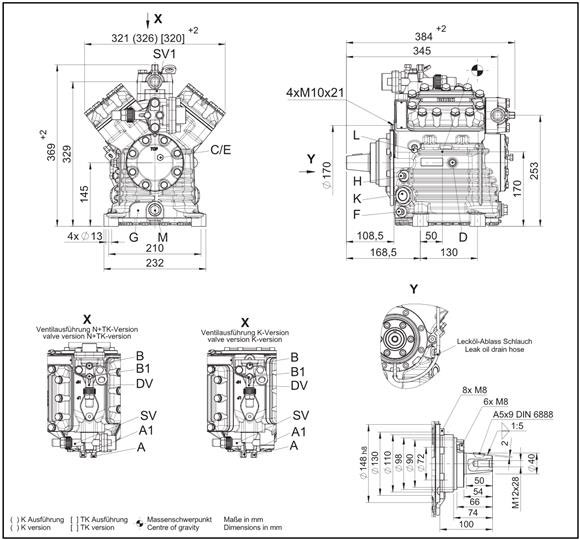

Dimensions Length / Width / Height 384 / 320 / 369 mm
