UMF200
Type:
Unicla 10-cylinder swashplate
Cooling capacity:
6-11KW
Displacement:
200cc/rev
Maximum continuous:
6000 rpm
Refrigerant:
R404A
Oil:
TM/QP21 compatible
We're here to help: Easy ways to get the answers you need.
• Smooth and quiet operation with excellent performance through all rev ranges
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
| Type: | Unicla 10-cylinder swashplate |
| Cooling capacity | 6-11KW |
| Displacement | 200cc/rev |
| Maximum continuous | 6000 rpm |
| Refrigerant | R404A |
| Oil | POE32 (180 ml) |
| Mounting | TM/QP21 compatible |

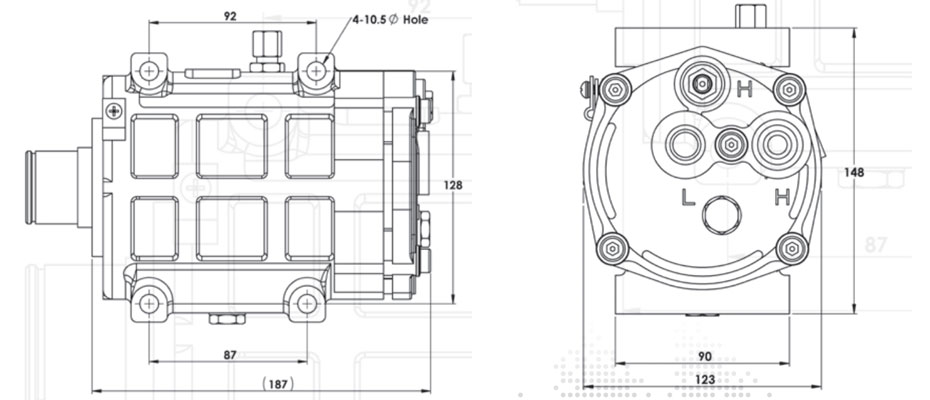

The UM and UMF model compressors feature a new mounting configuration of four conventional bolt-through mounting points that have been narrowed to 92 mm at the top and 87 mm at the bottom. They are directly compatible with TM21 and QP21 compressors.
Our Advantage
KingClima, as the 7A level service station and OEM supplier for Yutong bus air conditioner In China, also have more than 18 years of rich experience in bus ac parts for after-market.
Compressors for Bock , Bitzer , Valeo , Thermo king , Unicla , Denso , ETC and the compressor inner parts ; Electric compressors and parts;
Magnetic clutches for Bock , Bitzer , Valeo , Hispacold , Carrier, Thermo king , Unicla , Denso , and clutch remove repair tools ;
Evaporator blowers and condenser fans for Spal , Thermo king , Konvekta , Carrier Sutrak , Denso , EBM (BRUSHLESS) ,ETC
Receiver drier for Danfosss, Thermo king , Carrier Sutrak , Konvekta , Denso , ADK , Hispacold , ETC
Shaft seals for Thermo king , Bock , Bitzer , Denso , Hispacold , Carrier , Valeo ,ETC
Alternator for Bosch, Thermo king ,Prestolite and spare parts,ETC
Pressure switches ,clutch bearings ,A/C tools and other bus air spare parts
Main customers are from America , Canada , Mexico , Venezuela , Brazil , Argentina , Dominica , Costa Rica , Peru , Paraguay , Italy , Germany , England , Poland , Spain , Portugal , Russia , Australia , Indonesia , Philippines , India ,and so on . Getting well-known from the customers.
