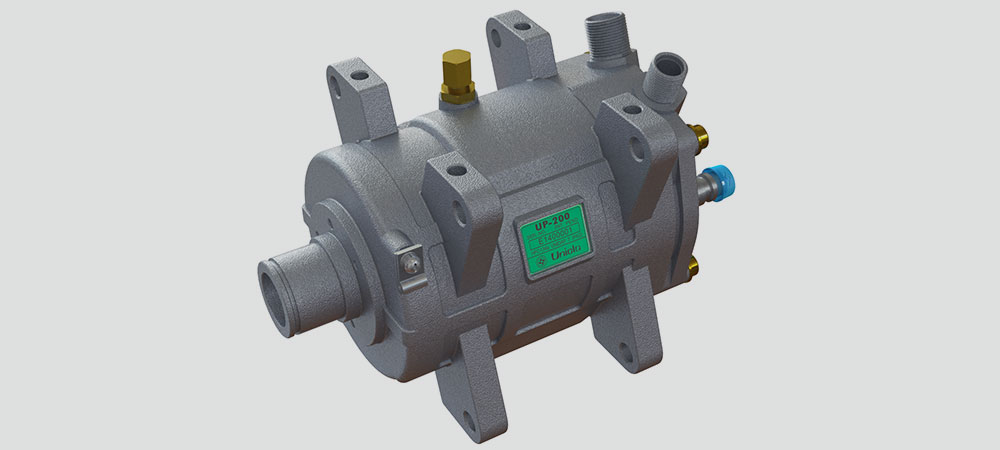

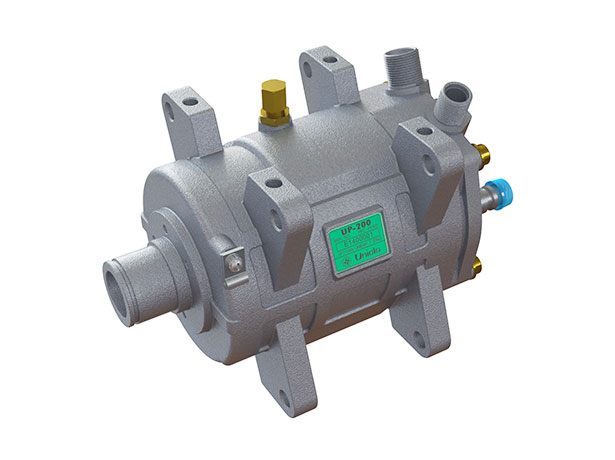

Type: Unicla 10-cylinder swashplate
Cooling capacity: 6-11KW
6-11KW: 200cc/rev
Maximum continuous: 6000 rpm
Refrigerant: R404A
Oil: POE32 (180 ml)
We're here to help: Easy ways to get the answers you need.
Description
Features
Smooth and quiet operation with excellent performance through all rev ranges
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
• Genuine NSK bearings throughout
Parameter
Type: Unicla 10-cylinder swashplate
Cooling capacity 6-11KW
Displacement 200cc/rev
Maximum continuous 6000 rpm
Refrigerant R404A
Oil POE32 (180 ml)
Mounting Ear mount

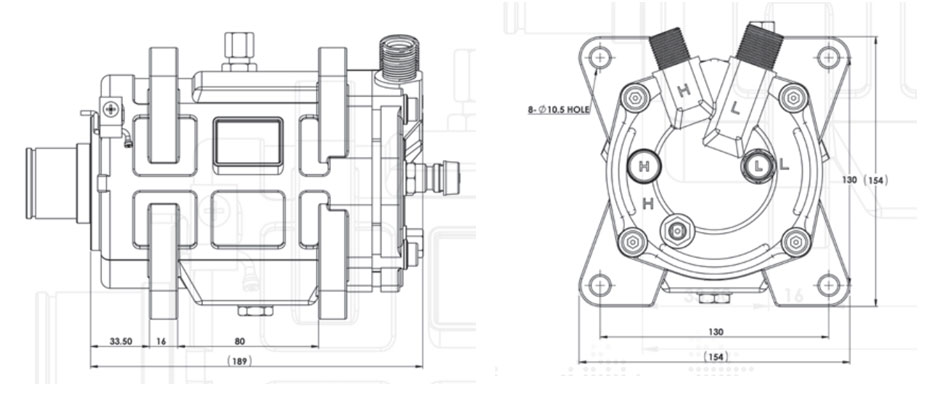

Drawing

The UP and UPF models are compatible with mounting brackets designed for compressors with 80 mm lug spacings and can be interchanged with many compressors used in various applications.
