UXF330

UXF330

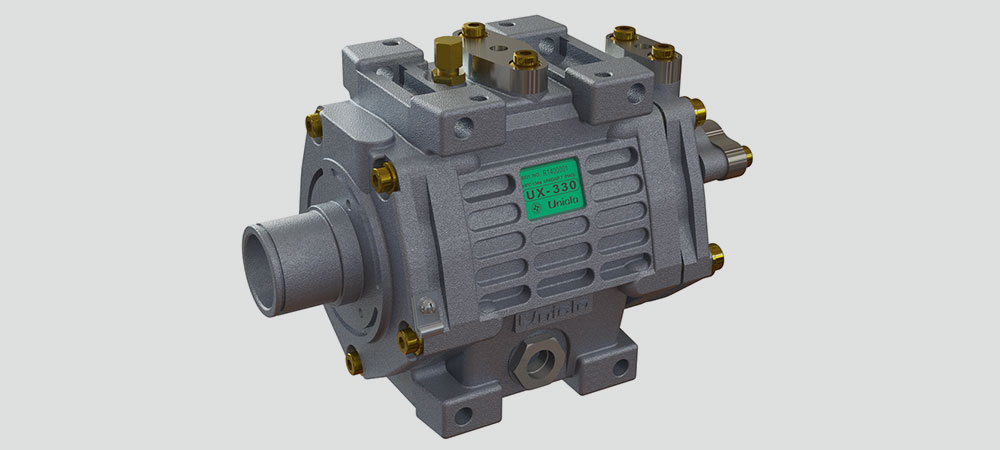

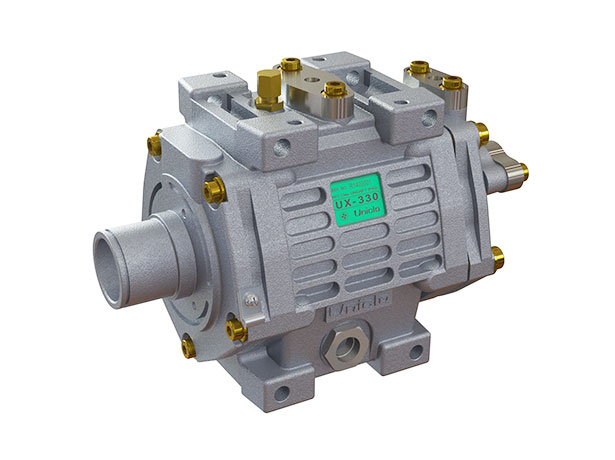

Model Number: Unicla UXF330
Type: Unicla 10-cylinder swashplate
Cooling capacity: 10-14KW
Displacement: 10-14KW
Maximum continuous: 4500 rpm
Refrigerant: R404A
We're here to help: Easy ways to get the answers you need.
Specifications
Features
• Smooth and quiet operation with excellent performance through all rev ranges
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
• Genuine NSK bearings throughout
Parameter
Model number Unicla UXF330
Type: Unicla 10-cylinder swashplate
Cooling capacity 10-14KW
Displacement 330cc/rev
Maximum continuous 4500 rpm
Refrigerant R404A
Oil POE32 (600 ml)
Mounting Direct (all sides)

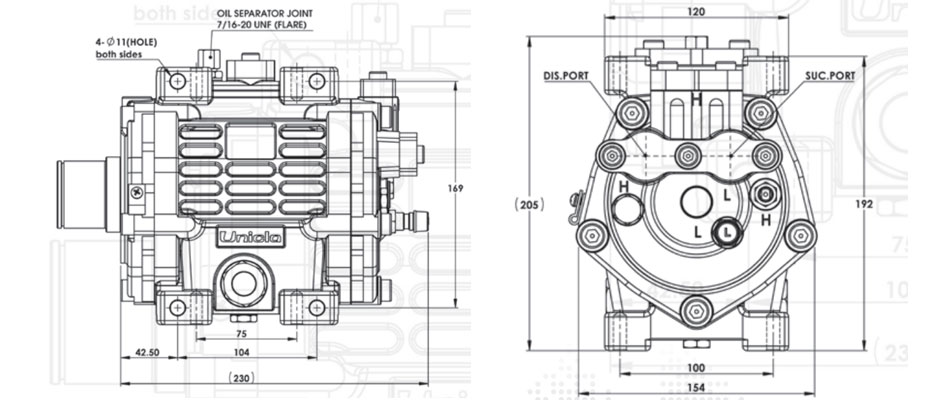

Drawing

Suited to all mounting brackets made for direct mount (boltthrough) compressors with bolt holes 104 mm apart, including four M10 x 1.5 mm threaded holes top and bottom 75 mm apart.

Hose ports
Porting for horizontal or vertical hose connections are standard, achieved by heavy duty blanking plates installed on outlets that are not in use. A range of standard hose port manifolds is available. Please see Clutch and hose port
