UXF380

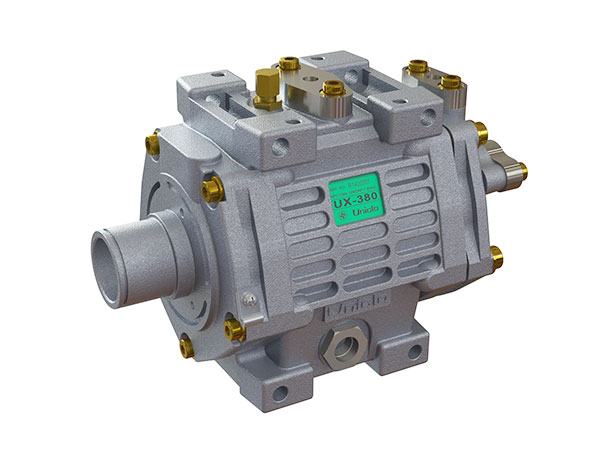

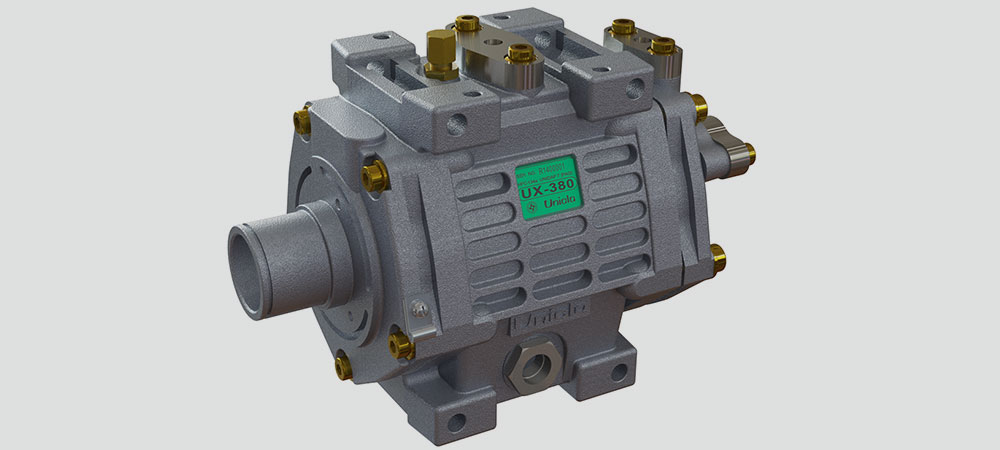

Model Number: Unicla UXF380
Type: Unicla 10-cylinder swashplate
Cooling capacity: 10-14KW
Displacement: 330cc/rev
Maximum continuous: 4500 rpm
Refrigerant: R404A
We're here to help: Easy ways to get the answers you need.
Description
Features
• Smooth and quiet operation with excellent performance through all rev ranges
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
• Genuine NSK bearings throughout
Parameter
Model number Unicla UXF380
Type: Unicla 10-cylinder swashplate
Cooling capacity 10-14KW
Displacement 330cc/rev
Maximum continuous 4500 rpm
Refrigerant R404A
Oil POE32 (600 ml)
Mounting TM/QP31 compatible

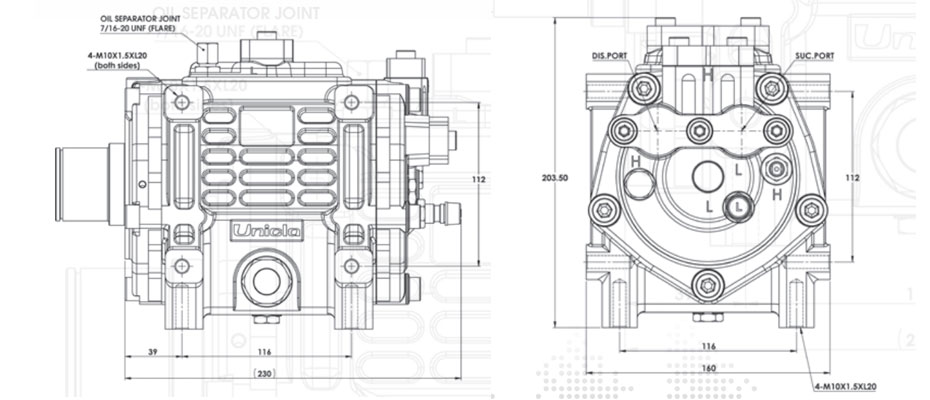

Drawing
The Multi Direct Mounting system on UM models provides a total of 12 mounting points (four on the left, right and bottom sides) enabling direct compatibility with TM31 and QP31 compressors. Each mounting point has an M10 x 1.5 mm threaded hole, providing excellent flexibility in engine mounting and bracket design.

Hose ports
Porting for horizontal or vertical hose connections are standard, achieved by heavy duty blanking plates installed on outlets that are not in use. A range of standard hose port manifolds is available. Please see Clutch and hose port
