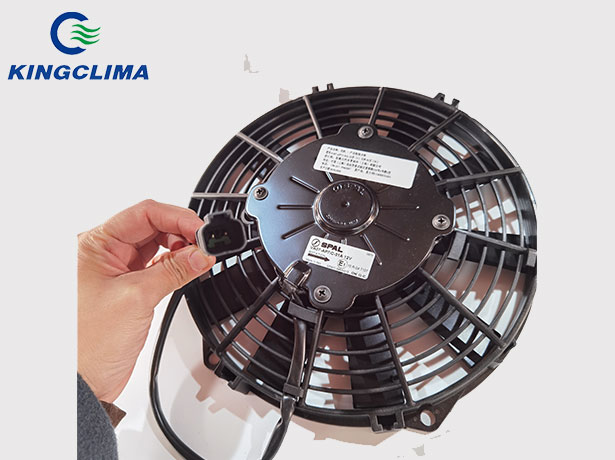

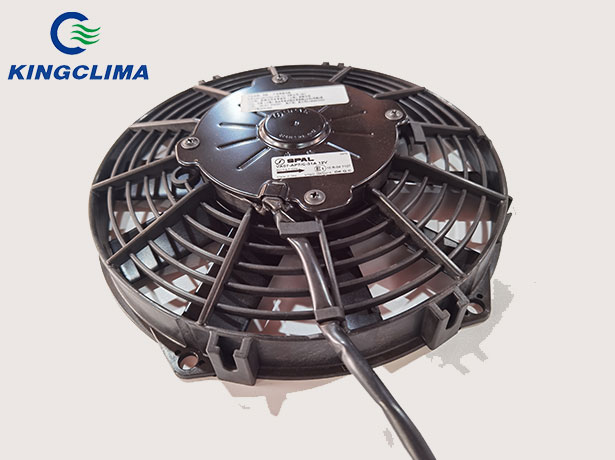

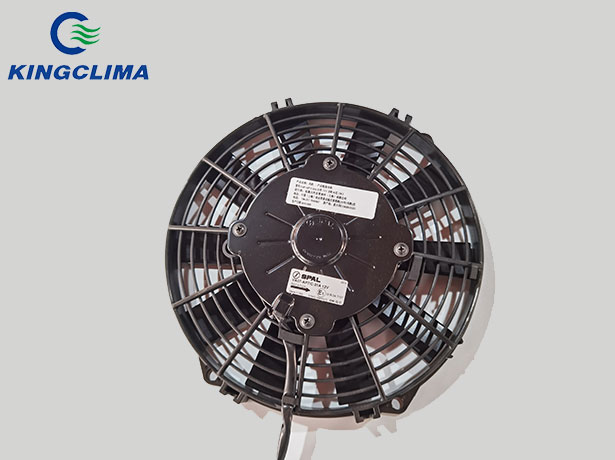

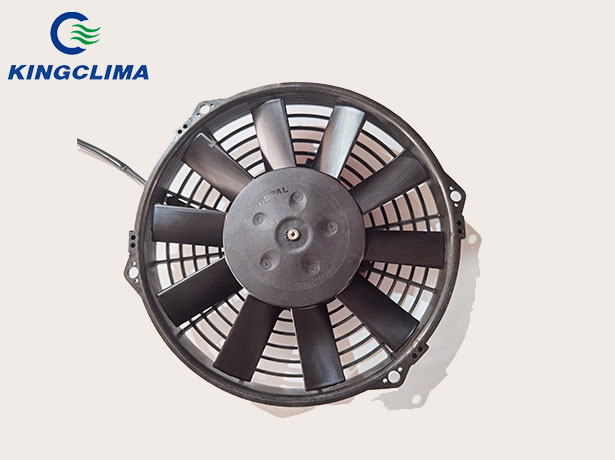

VA07-AP7C-31A 12V Condenser Fans for Truck Refrigeration Units

Models: VA07-AP7C-31A 12V
Maximum Airflow (at zero Static Pressure): 596CFM (1010m³/h)
Fan Blade Ø: 225mm (9")
Standard Features: Waterproof motor, IP 68
We're here to help: Easy ways to get the answers you need.
DESCRIPTION

Brief Introduction of Condenser Fans for Truck Refrigeration System


VA07-AP7C-31A 12V is condenser fans for truck refrigeration system. KingClima provide it is SPAL original condenser fans with best price.

PARAMETERS

Technical of Condenser Fans for Truck Refrigeration Unit


Maximum Airflow (at zero Static Pressure) 596CFM (1010m³/h)
Fan Blade Ø 225mm (9")
Standard Features Waterproof motor, IP 68
Life Long life
Warranty 12 Months Guarantee
Operating Voltage 12v (tested at:13v)
IP Rating IP68
SPAL Type/Description VA07-AP7/C-31A
  /C: C Class 5000hr motor
Airflow Direction Suction
Mounting Bolt/Screw M5 bolt
Mounting Torque 3(+1/-0) Nm
