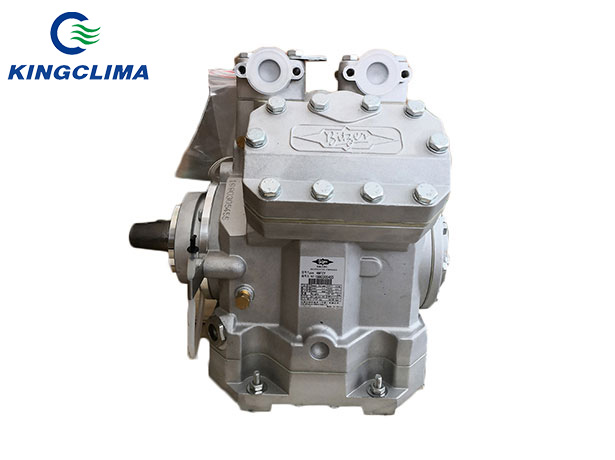

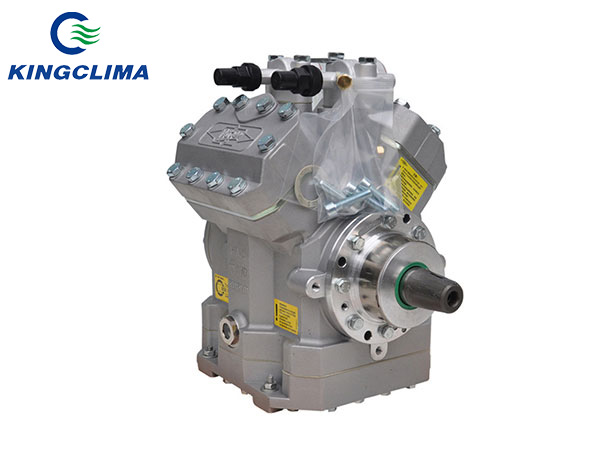

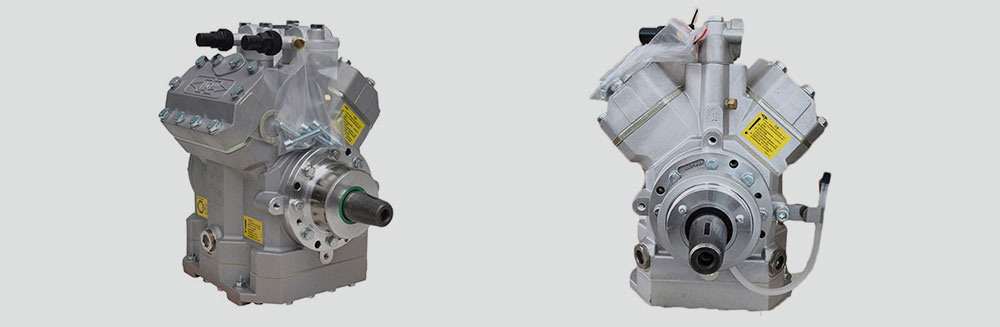

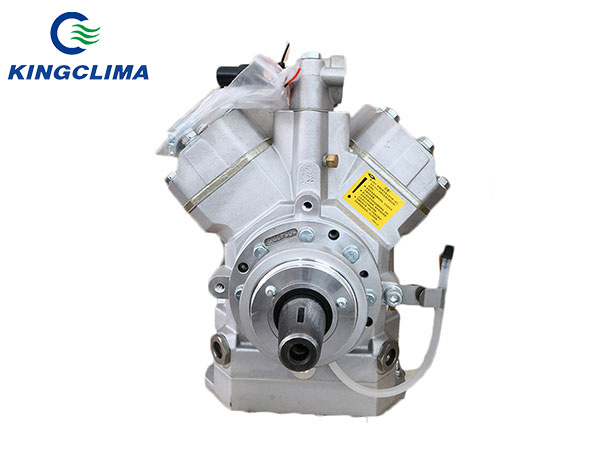

Bitzer 4UFC
Bitzer 4UFC
Bitzer 4UFC
Bitzer 4UFC

Bitzer 4UFC

Brand Name: Bitzer
Cylinder volume: 400 cm³
Displacement (1450rpm) : 34,7 m³/h
Displacement (3000 RPM): 71,9 m³/h
No. of cylinder x bore x stroke: 4 x 55 x 42mm
Weight (without clutch): 35,0 kg
We're here to help: Easy ways to get the answers you need.
Specifications

Brief Introduction of Bitzer 4ufcy Compressor


Bitzer 4ufcy is for bus air conditioners with 6-18m length, the 4ufcy compressor is 4 cylinders and kingclima provide the original new 4ufcy compressor price is best.


Magnetic Clutch for Bitzer 4UFCY Compressor


LA16 magnetic clutch (Optional)
Parameters

Technical of Bitzer 4UFCY

Cylinder volume 400 cm³
Displacement (1450rpm) 34,7 m³/h
Displacement (3000 RPM) 71,9 m³/h
No. of cylinder x bore x stroke 4 x 55 x 42mm
Allowed speed range 500 .. 3500 1/min
Weight (without clutch) 35,0 kg
Magnetic clutch 12V or 24V DC LA16 (Option)
Weight magnetic clutch 10 kg
V-belts 2 x SPB
Max. pressure (LP/HP) 19 / 28 bar
Connection suction line 28 mm - 1 1/8''
Connection discharge line 22 mm - 7/8''
Oil type R134a BSE 55 (Option)
Oil type R22 B5.2 (Standard)
Oil charge 1,5 dm³
Crankcase heater 70 W 12or 24V DC (Option)
Pressure relief valve Standard
