Bitzer compressor F600

Brand Name: Bitzer
Cylinder volume: 582 cm³
Displacement (1450rpm) : 50,6 m³/h
Displacement (3000 RPM): 104,7 m³/h
Weight: 42KG
No. of cylinder x bore x stroke: 4 x 70 x 37,8 mm
We're here to help: Easy ways to get the answers you need.
Description

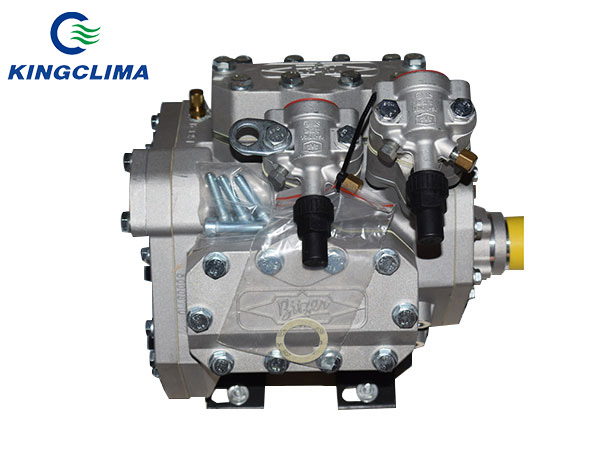

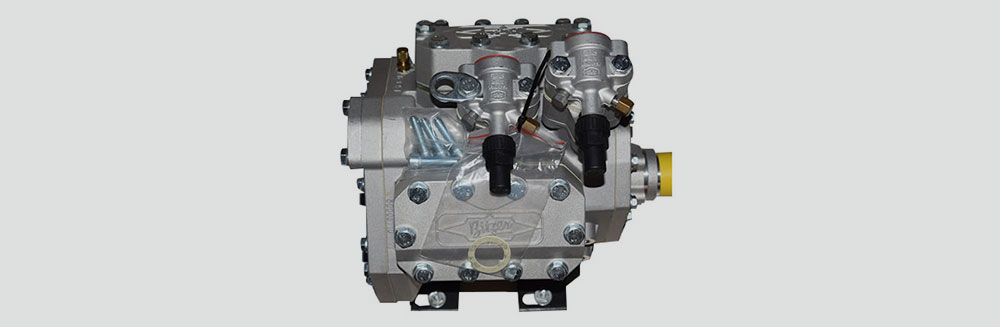

Brief Introduction of Bitzer Compressor F600


Bitzer F600 compressor is 4 cylinders bus ac compressor for the transport cooling solutions. The OEM code of Bitzer compressor F600 is: H13004503


F600 Bitzer Compressor Magnetic Clutch


LA600.1Y or KK46.1.1


Parameter

Technical of F600 Compressor


Cylinder volume 582 cm³
Displacement (1450rpm) 50,6 m³/h
Displacement (3000 RPM) 104,7 m³/h
No. of cylinder x bore x stroke 4 x 70 x 37,8 mm
Allowed speed range 500 .. 4000 1/min
Weight (without clutch) 27 kg
Magnetic clutch 12V or 24V DC LA600.1Y or KK46.1.1
Weight magnetic clutch 11.4 kg
V-belts 2 x SPB
Max. pressure (LP/HP) 19 / 28 bar
Connection suction line 35 mm - 1 3/8''
Connection discharge line 35 mm - 1 3/8''
Oil type R134a BSE 55 (Standard)
Oil type R22 B5.2 (Option)
