Valeo TM43 Compressor

Model: Valeo TM43
TECHNOLOGY : Heavy Duty Swash Plate
Displacement: 425cc / 26 in 3 per rev.
REVOLUTION RANGE: 600-5000 rpm
We're here to help: Easy ways to get the answers you need.
Discription

Brief Introduction of Valeo TM43 Compressor


Valeo TM43 compressor has a high efficiency working performance. Compared with Bock FKX40, the cooling performance is increased by 5% and compressor with Bitzer 4TFCY and F400 bus ac compressor, the cooling performance is increased by 10%.

As for KingClima industry, we are the leading supplier of bus ac parts in China and for the tm43 valeo model, we can give it to customers with a low price for the original new one.

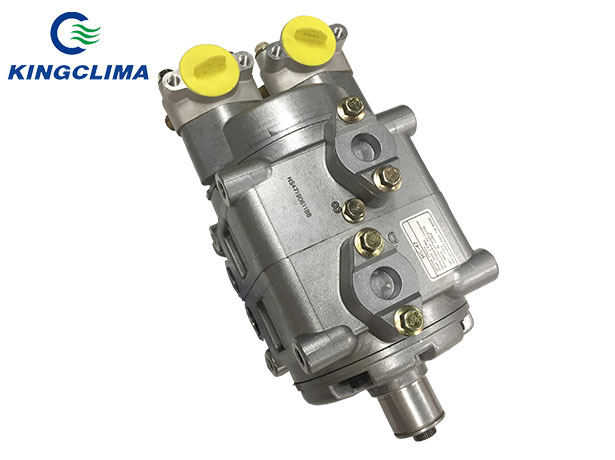

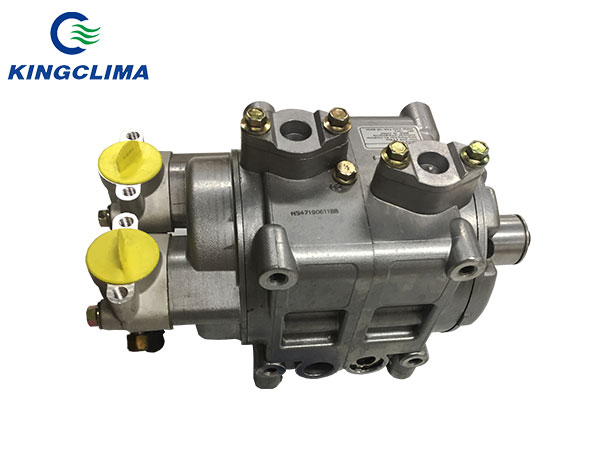

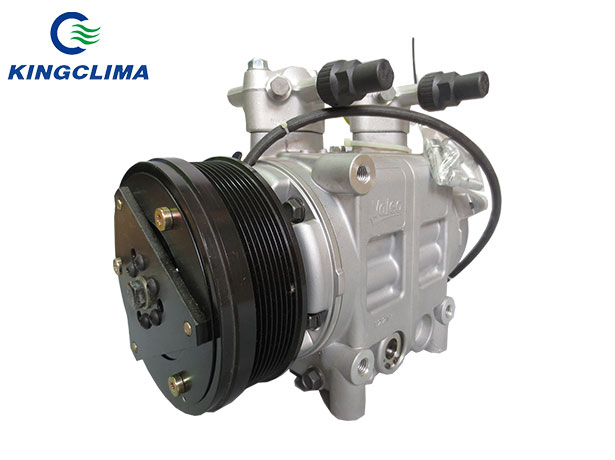

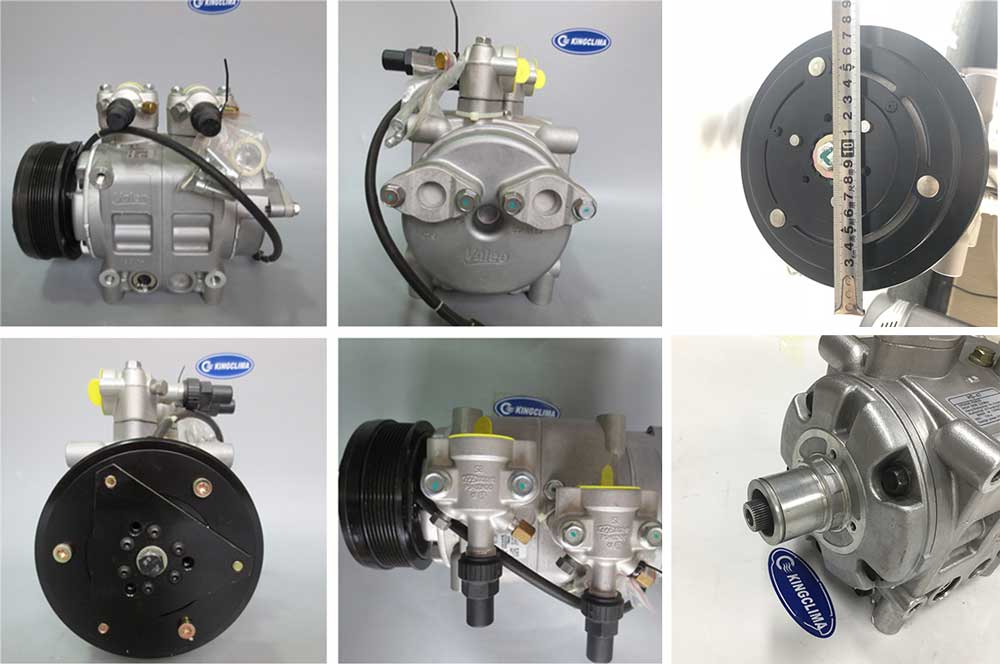

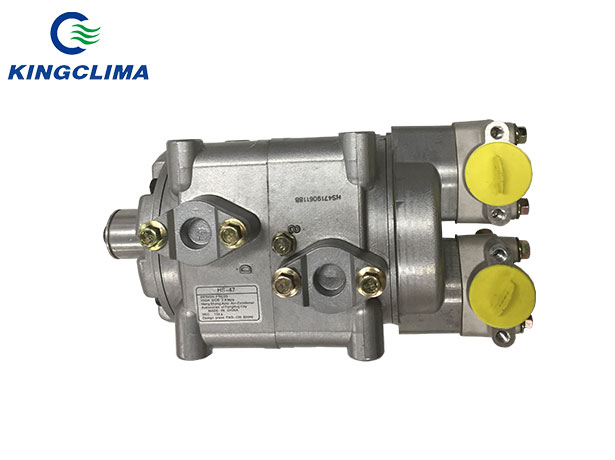

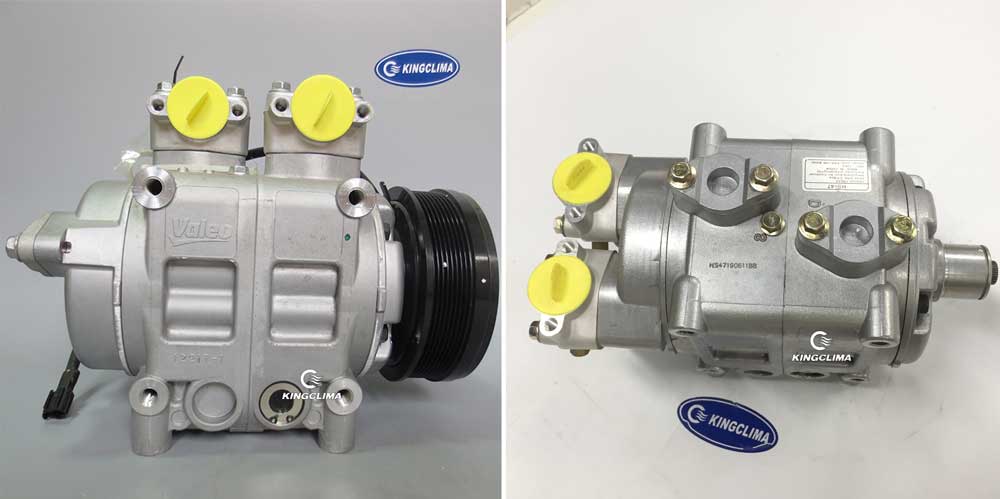

Photo: Valeo TM43 with clutch (left) and without clutch (right) for choice
Photo: Valeo TM43 with clutch (left) and without clutch (right) for choice

Technical Data

Technical of Valeo TM 43 Compressor


Type TM43
TECHNOLOGY  Heavy Duty Swash Plate
DISPLACEMENT 425cc / 26 in 3 per rev.
NUMBER OF CYLINDERS 10 (5 double-headed pistons)
REVOLUTION RANGE 600-5000 rpm
DIRECTION OF ROTATION Clockwise viewed from clutch
BORE  40 mm (1.57 in)
STROKE 33.8 mm (1.33 in)
SHAFT SEAL Lip seal type
LUBRICATION SYSTEM Lubrication by gear pump
REFRIGERANT  HFC-134a
OIL (QUANTITY) PAG OIL (800 cc/0.21 gal) or POE option
CONNECTIONS
Internal Hose Diameter
Suction: 35 mm (1-3/8 in)
Discharge: 28 mm (1-1/8 in)
WEIGHT (w/o clutch)  13.5 kg / 29.7 lbs
DIMENSIONS (w/o clutch)
Length - Width - Height
319-164-269 (mm) 12.6-6.5-10.6 (in)
MOUNTING  Direct (side or base)
